Asc Engineered Solutions 2400223737 Tube Clamp Pvc Cushion

Product Description

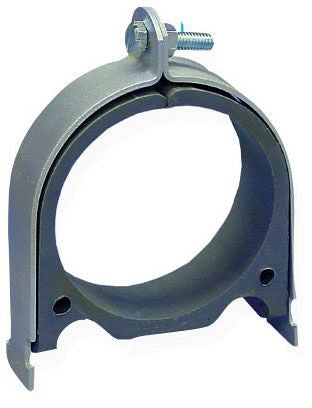

The ASC Engineered Solutions 2400223737 is a strut-mount tube clamp with an integrated PVC cushion, designed to secure tubing runs in mechanical, plumbing, and HVAC applications. The clamp fits 3/4 inch outer diameter tubing with a 5/8 inch nominal tube size. The PVC cushion lining isolates the tube from direct metal contact, reducing vibration transmission and protecting the tube surface from abrasion. This type of clamp is a standard component used by plumbers, pipefitters, and HVAC technicians when anchoring copper, steel, or plastic tubing to strut channel support systems.

This clamp is suited for use in residential and light commercial mechanical systems where tubing must be supported along runs through framed walls, equipment rooms, or utility spaces. It mounts directly to standard strut channel (Unistrut-style), allowing quick positioning and securing of tube lines during rough-in and installation. Typical applications include refrigerant line sets, hydronic piping, domestic water lines, and conduit or tubing runs requiring vibration-damped support.

Key Features

• Fits 3/4 inch OD tubing with 5/8 inch nominal designation
• PVC cushion lining absorbs vibration and protects tube surface from wear
• Designed for direct attachment to standard strut channel framing systems
• Lightweight at 0.14 pounds per unit, minimizing added load on support structures
• Suitable for copper, steel, and compatible plastic tube materials

Compatibility

Designed as an OEM-style strut tube clamp for use with standard strut channel support systems in residential and commercial mechanical piping and HVAC installations.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC technicians. Shut off and depressurize any active line before repositioning or securing clamps on live systems. Ensure strut channel is properly anchored to structure per applicable mechanical codes before loading with tubing. Do not overtighten the clamp fastener against the PVC cushion, as excessive clamping force can deform the cushion and reduce vibration isolation effectiveness.

Technical Specifications

• Outer Diameter: 3/4 inches
• Nominal Tube Size: 5/8 inches
• Type: Tube Clamp with PVC Cushion
• Mount Style: Strut Channel
• Weight: 0.14 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2400223737
