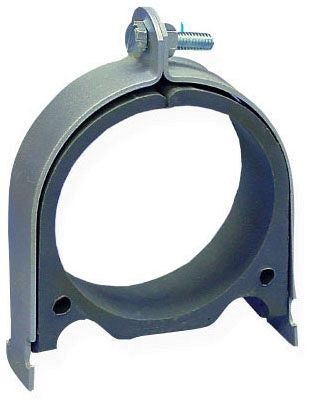

Asc Engineered Solutions 2400223729 Tube Clamp Pvc Cushion Strut

Product Description

The ASC Engineered Solutions 2400223729 is a strut-mount tube clamp with an integrated PVC cushion, designed to secure tubing to strut channel in mechanical, plumbing, and HVAC piping systems. Sized for 5/8-inch outer diameter tubing with a 1/2-inch nominal pipe size, the cushion lining isolates the tube from direct metal contact, reducing vibration transmission and protecting the tube surface. Weighing 0.14 pounds per unit, this clamp is a compact, single-piece fastening component. It is installed by licensed plumbers, HVAC technicians, and pipefitters working with strut-supported pipe runs in both new construction and retrofit applications.

This clamp is suited for use in residential and light commercial mechanical rooms, rooftop equipment supports, and inline pipe runs where tubing must be anchored to unistrut or equivalent strut channel. The PVC cushion makes it appropriate for copper, thin-wall steel, or similarly dimensioned tubing where surface protection and vibration isolation are priorities. It is commonly used in hydronic piping, refrigerant lines, and domestic water distribution systems routed along strut framing.

Key Features

• Fits 5/8-inch outer diameter tubing with 1/2-inch nominal sizing
• Integrated PVC cushion isolates tubing from strut channel to reduce vibration and prevent abrasion
• Mounts directly to standard strut channel without additional hardware beyond a nut and bolt
• Lightweight at 0.14 pounds per unit, suitable for high-quantity installs
• Applicable across HVAC, plumbing, and general mechanical piping systems

Compatibility

Designed as a strut-mount tube clamp for 5/8-inch OD, 1/2-inch nominal tubing. Compatible with standard unistrut and equivalent strut channel framing systems used in commercial and residential mechanical installations.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or HVAC technicians. Isolate or de-pressurize the piping system before positioning or adjusting clamps on active lines. Fasten to strut channel using the appropriate strut nut and bolt torqued per the strut manufacturer's guidelines. Verify that the PVC cushion is fully seated and undamaged before securing the clamp to avoid point-loading on the tube surface.

Technical Specifications

• Outer Diameter: 5/8 inches
• Nominal Size: 1/2 inches
• Type: Tube Clamp
• Cushion Material: PVC
• Mounting Style: Strut Channel
• Weight: 0.14 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2400223729
