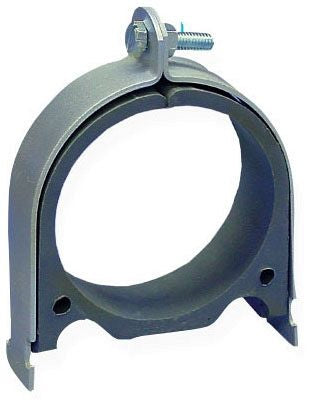

Asc Engineered Solutions 2400223711 Tube Clamp Pvc Cushion

Product Description

The ASC ENGINEERED SOLUTIONS 2400223711 is a strut-mount tube clamp with a PVC cushion lining, designed to secure tubing runs to standard strut channel in mechanical, plumbing, and HVAC piping installations. Sized for 1/2 inch outer diameter tubing with a 3/8 inch nominal pipe size, the PVC cushion insert isolates the tube from metal-to-metal contact, reducing vibration transmission and protecting tube surfaces. This type of clamp is a standard fastening component used by pipefitters, plumbers, and HVAC mechanics when routing copper, plastic, or other small-diameter tubing along framed strut systems.

The 2400223711 is suited for use in residential and light commercial mechanical systems where tubing must be supported at regular intervals along unistrut or similar slotted strut channel. Common applications include refrigerant line support, domestic water piping, and low-pressure pneumatic or instrumentation tubing runs. The clamp mates with standard strut hardware and is installed during rough-in or piping layout phases of a project.

Key Features

• Fits 1/2 inch outer diameter tubing on 3/8 inch nominal tube size
• PVC cushion insert reduces vibration and protects tube exterior from abrasion
• Designed for use with standard strut channel framing systems
• Lightweight at 0.13 pounds per unit for easy handling and bulk installation

Compatibility

Designed as a strut-compatible tube clamp for 1/2 inch OD tubing in residential and light commercial piping and mechanical systems using standard slotted strut channel.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC mechanics. Secure the clamp to strut channel using the appropriate strut nut and bolt hardware before tightening to avoid tube deformation. Verify tube OD matches the clamp size prior to installation. Follow applicable IPC or IFGC guidelines for support spacing intervals when used in plumbing or gas piping applications.

Technical Specifications

• Outer Diameter: 1/2 inch
• Nominal Size: 3/8 inch
• Type: Tube Clamp with PVC Cushion
• Weight: 0.13 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 2400223711
