Asc Engineered Solutions 2400223695 Tube Clamp Pvc Cushion Strut

Product Description

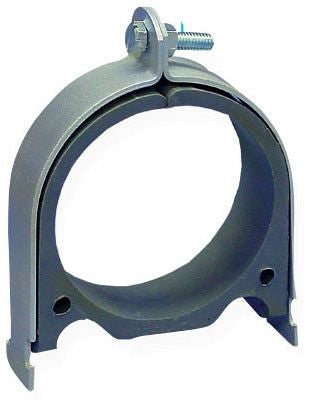

The ASC ENGINEERED SOLUTIONS 2400223695 is a strut-mount tube clamp with a PVC cushion, designed to secure small-diameter tubing to standard strut channel in mechanical, plumbing, and HVAC piping systems. Built for a tube outer diameter of 0.25 inches and a nominal size of 0.125 inches, this clamp provides a cushioned grip that protects tubing from vibration, abrasion, and direct metal-to-metal contact. The PVC lining isolates the tube surface and helps reduce noise transfer through the support structure. Weighing 0.10 pounds per unit, it is a lightweight hardware component suited for both new construction and retrofit installations.

This clamp is used wherever small-bore tubing must be anchored to strut channel framing, including HVAC refrigerant line sets, instrumentation tubing, and light-duty plumbing lines routed along strut runs. It is appropriate for residential and commercial mechanical applications where a positive, cushioned hold is required along a strut support grid. Installers working with copper, aluminum, or plastic tubing at the 0.125-inch nominal size will find this clamp a standard hardware solution for organized, code-appropriate tube routing.

Key Features

• PVC cushion lining protects tube OD from abrasion and reduces vibration transmission
• Designed for 0.25-inch outer diameter tubing with 0.125-inch nominal size
• Mounts directly to standard strut channel for fast, secure tube support
• Lightweight at 0.10 pounds per unit, suitable for high-density installation runs

Compatibility

Designed as an OEM-style strut tube clamp for use with standard strut channel systems where 0.25-inch OD tubing requires cushioned support.

Installation Notes

Installation is performed by licensed HVAC technicians, pipefitters, or plumbers as part of tube routing and support work along strut channel frameworks. Ensure the tubing system is depressurized and all fluid flow is shut off before positioning and tightening the clamp. Follow applicable mechanical codes, including IFGC and IPC guidelines, for tube support spacing and clamp placement. Do not overtighten fasteners against the PVC cushion, as excessive compression can deform the lining and reduce its protective function.

Technical Specifications

• Outer Diameter: 0.25 inches
• Nominal Size: 0.125 inches
• Type: Tube Clamp with PVC Cushion
• Item Weight: 0.10 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 2400223695
