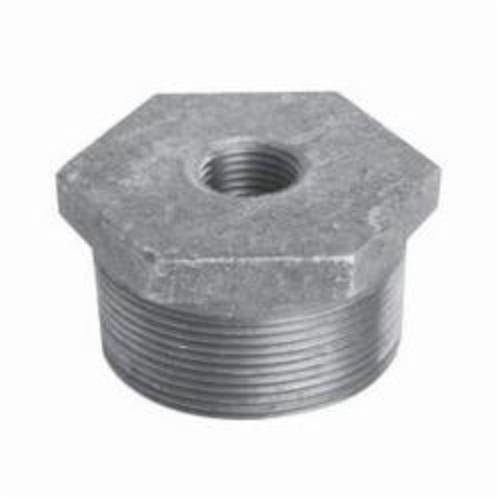

Asc Engineered Solutions 1BXE.BB Hex Head Pipe Bushing

Product Description

The ASC ENGINEERED SOLUTIONS 1BXE.BB is a hex head pipe bushing used to reduce a larger threaded pipe opening to a smaller one within a piping system. It features a 1-1/4 inch male NPT (MNPT) outer thread and a 3/4 inch female NPT (FNPT) inner thread, allowing a smooth transition between two common pipe sizes. Rated at 125 lb, this bushing is cast from black cast iron and is domestically produced. It is installed by licensed plumbers and pipefitters in gas, water, and steam distribution lines where a threaded reducing connection is required.

This bushing suits residential and light commercial piping applications. It is commonly used in gas distribution, hydronic heating systems, compressed air lines, and general water service where a 1-1/4 inch pipe run must transition down to a 3/4 inch branch or fitting. The hex head profile allows a wrench to be seated securely during installation, making it suitable for tight spaces and high-torque makeup connections.

Key Features

• 1-1/4 inch MNPT outer thread reduces to 3/4 inch FNPT inner thread
• 125 lb pressure class cast iron construction
• Hex head design provides a wrench flat for secure installation
• Black cast iron finish suitable for gas and water service
• Domestically produced to standard pipe fitting tolerances

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1-1/4 inch and 3/4 inch NPT threaded piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC) or International Fuel Gas Code (IFGC) where relevant. Shut off and depressurize the line before fitting removal or installation. Apply an approved thread sealant or PTFE tape to the male threads before makeup. Do not over-tighten cast iron fittings, as the material is not forgiving of stress cracking.

Technical Specifications

• Nominal Size: 1-1/4 x 3/4 inches
• End Style: MNPT x FNPT
• Pressure Rating: 125 lb
• Material: Cast Iron
• Finish: Black
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 1BXE.BB
