Asc Engineered Solutions 0818907685 2X1-1/2 Blk Imi Hex Bushing

Product Description

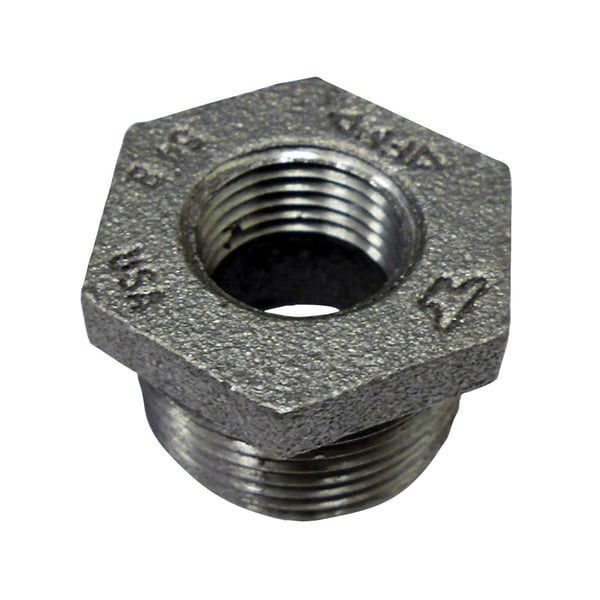

The ASC ENGINEERED SOLUTIONS 0818907685 is a SPF/Anvil Pipe Bushing, Standard Hex Head, Series: FIG 3383. This fitting is internationally manufactured using malleable iron. It has a 2 x 1-1/2 in Nominal, MNPT x FNPT End Style, and a pressure class of 150 lb.

• Internationally Manufactured Malleable Iron Pipe Fitting
• ASME B16.14/B1.20.1
• cULus Listed

Product Highlights

The fitting is FM Approved and UL/ULC Listed. Black Oxide finish. Temperature Rating: -20 deg F.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0818907685

Technical Specifications

• Domestic/Import: Import
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Bushing
• Material: Malleable Iron
• Nominal Size: 2 x 1-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Series: FIG 3383
• Temperature Rating: -20 deg F
• Type: Standard Hex Head
• Manufacturer: ASC Engineered Solutions
• Connection Size 1: 2 in
• Connection Size 2: 1-1/2 in
• Connection Type 1: MNPT
• Connection Type 2: FNPT
• Connection Type: MNPT|FNPT
• Dimension Standards: ASME B16.3/B16.14/B.1.20.1/B16.3/B16.14
• Fitting Type: Bushing
• Material Construction: Malleable Iron
• Color: Black
