Asc Engineered Solutions 0818907487 1 1/2X3/4 Blk Imi Hex Bushing

Product Description

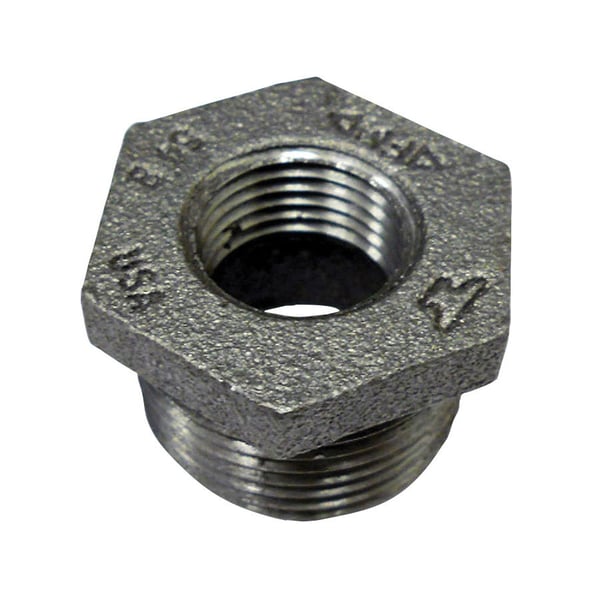

The ASC ENGINEERED SOLUTIONS 0818907487 is a SPF/Anvil Pipe Bushing with a standard hex head. This fitting is part of the FIG 3383 series and features a 1-1/2 x 3/4 in nominal size with MNPT x FNPT end style. Constructed from malleable iron with a black oxide finish, it is rated to 175 psi.

• Internationally Manufactured Malleable Iron Pipe Fitting
• ASME B16.3
• cULus Listed

Product Highlights

Standard hex head pipe bushing with 1-1/2 x 3/4 inch nominal size and MNPT x FNPT end style.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0818907487

Technical Specifications

• Domestic/Import: Import
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Bushing
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Series: FIG 3383
• Temperature Rating: -20 deg F
• Type: Standard Hex Head
• Manufacturer: ASC Engineered Solutions
