Asc Engineered Solutions 0810008607 1 x 1/2 in Black Imi 90 Ell

Product Description

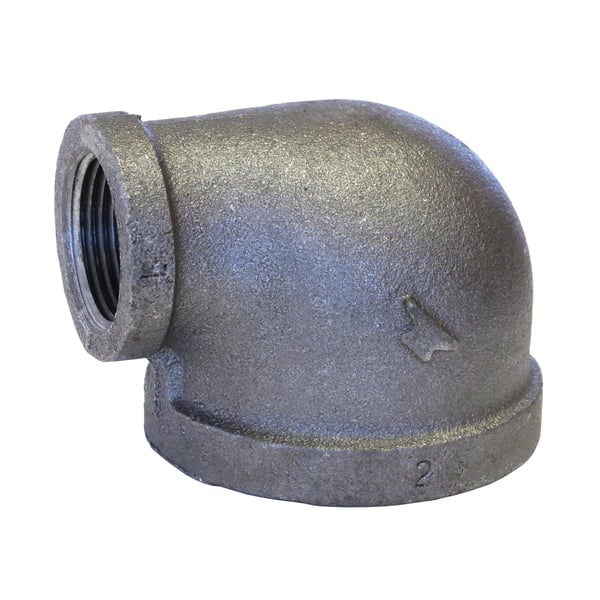

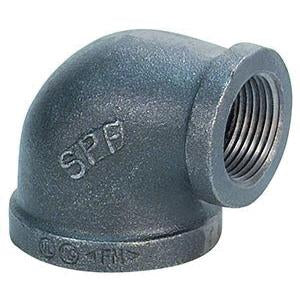

The ASC ENGINEERED SOLUTIONS 0810008607 pipe reducing elbow is part of the FIG 3101R series. This 90-degree elbow fitting has a 1 x 1/2 in nominal size with FNPT end style. Constructed from malleable iron with a black oxide finish, it supports a pressure rating of 300 psi.

• Internationally Manufactured Malleable Iron Pipe Fitting
• ASME B16.3
• cULus Listed

Product Highlights

This malleable iron pipe fitting is ideal for plumbing applications requiring a 90-degree turn with a reduction in pipe size.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0810008607
• Country of Origin: Import

Technical Specifications

• Domestic/Import: Import
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 1 x 1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Connection Size 1: 1 in
• Connection Size 2: 1/2 in
• Connection Type 1: FNPT
• Connection Type 2: FNPT
• Dimension Standards: ASME B16.3/B1.20.1
• Fitting Type: 90 deg Elbow
• Material Construction: Malleable Iron
