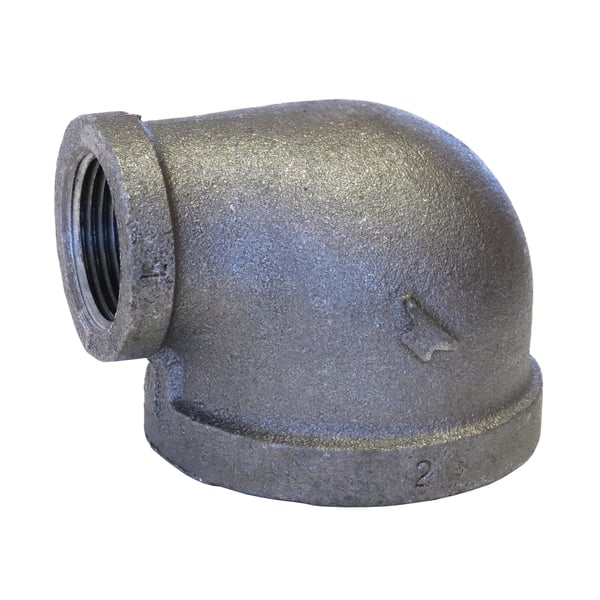

Asc Engineered Solutions 0810008409 SPF/Anvil Pipe Reducing 90 deg Elbow 1 x 3/4 inch

Product Description

The ASC ENGINEERED SOLUTIONS 0810008409 SPF/Anvil Pipe Reducing 90 Degree Elbow is designed for connecting pipes of different nominal sizes, specifically 1 x 3/4 inch. This malleable iron fitting features an FNPT end style and a black oxide finish, suitable for systems with a pressure rating of 300 psi and a temperature range of -20 to 150 deg F. It is rated for a 150 lb pressure class and SCH 40/STD schedule.

• ASME B16.3 compliant
• FM Approved for specific applications
• cULus Listed for safety standards

Product Highlights

Malleable iron reducing elbow for reliable pipe connection and flow redirection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0810008409
• Country of Origin: Import

Technical Specifications

• End Style: FNPT
• Finish: Black Oxide
• Fitting Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 1 x 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3101R
• Temperature Rating: -20 to 150 deg F
