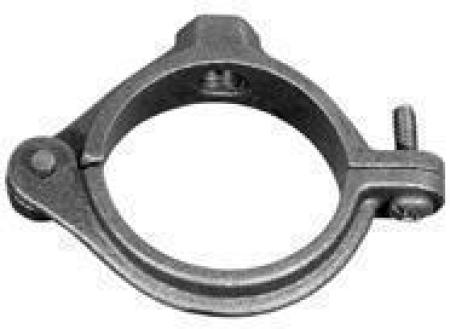

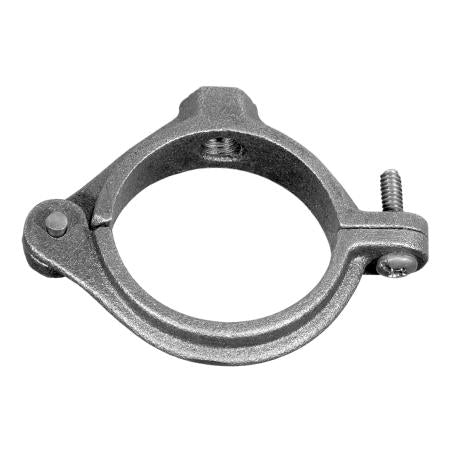

Asc Engineered Solutions 0560500183 138R 3/8 Imp Rod/Thr Malleable Iron Split Clamp (3/8)

Product Description

Asc Engineered Solutions 0560500183 is a split pipe clamp (Series FIG 138R) constructed of malleable iron with zinc plating, designed for 3/8 in pipe or tube and 3/8 in rod. The clamp has a 180 lb load capacity, a 450 deg F temperature rating, and a hinged design with a single closure screw. It is suitable for 3/4 through 3 in pipe and meets ANSI/MSS SP-69/58 and Federal Specification A-A-1192A.

• Malleable iron construction with zinc plating; temperature rating 450 deg F; 180 lb load capacity.
• Hinged design with single closure screw for rapid installation; inside ring tapered to prevent entrapment of condensed moisture.
• Suitable for use with 3/4 through 3 in pipe; adaptive for refrigeration or compressor piping when used with a nipple; meets ANSI/MSS SP-69/58 and A-A-1192A.

Product Highlights

Series FIG 138R split clamp for 3/8 in pipe/tube and rod; malleable iron, zinc plated; 180 lb capacity; 450 deg F rating; meets ANSI/MSS SP-69/58 and A-A-1192A.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0560500183
• Country of Origin: Import

Technical Specifications

• Manufacturer: Asc Engineered Solutions
• Manufacturer Part Number: 0560500183
• Series: FIG 138R
• Material: Malleable iron
• Finish: Zinc plated
• Load Capacity: 180 lb
• Pipe/Tube Size: 3/8 in
• Rod Size: 3/8 in
• Suitable Pipe Size: 3/4 through 3 in
• Temperature Rating: 450 deg F
• Origin: Import
• Standards: ANSI/MSS SP-69/58; Federal Specification A-A-1192A
• Design: Hinged split clamp
• Closure Type: Single closure screw
• Interior Feature: Inside ring tapered to prevent entrapment of condensed moisture
• Application Note: Adaptive for refrigeration or compressor piping when used with a nipple
