Asc Engineered Solutions 0500009071 92d 1/2 Standard Throat Beam Clamp

Product Description

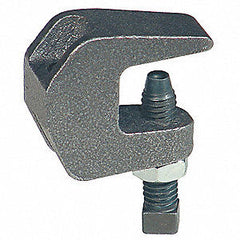

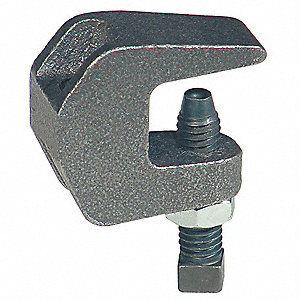

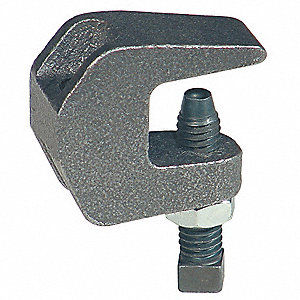

The ASC ENGINEERED SOLUTIONS 0500009071 Anvil C-Clamp, from the FIG 92 series, features a 1/2 in rod and is recommended for use under roof installations with bar joist type construction. It can be attached to the top or bottom flange of structural shapes. Secured with a cup-pointed set screw and jam nut, it allows extended adjustment of the threaded rod.

• Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of
• They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
• Secured in place by a cup-pointed set screw tightened against the flange, a jam nut is provided for tightening the set screw against the body casting

Product Highlights

The clamp is cULus Listed and FM Approved, with a ductile iron build and hardened steel cup point set screw and locknut.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0500009071

Technical Specifications

• Finish: Plain
• Load Capacity: 950 lb Top/760 lb Bottom
• Material: Ductile Iron
• Rod Size: 1/2 in
• Series: FIG 92
• Torque: 125 in-lb
• Temperature Rating: 450 deg F
• Type: Universal Standard Throat
• Manufacturer: ASC Engineered Solutions
