Asc Engineered Solutions 0500009063 Anvil® 92 Series Universal Beam C-Clamp 3/8 in Rod 500 lb Load

Product Description

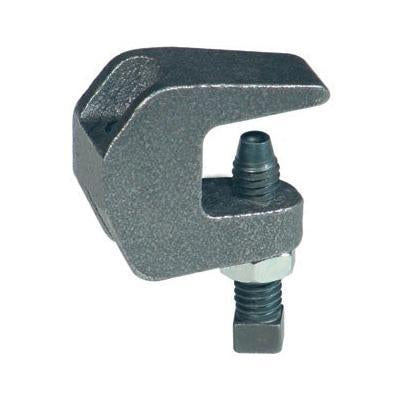

The ASC ENGINEERED SOLUTIONS 0500009063 Anvil® 92 Series universal beam C-clamp is designed for attaching to horizontal flanges of structural members. It features a 3/8 in rod size, 3/4 in flange thickness, and a 500 lb load capacity. Constructed from iron with a hot-dipped galvanized finish, this clamp is suitable for various applications.

• Can be attached to horizontal flanges in top or bottom beam positions
• Secured with a cup-pointed set screw tightened against the flange
• Features thru tapping of the body casting for extended adjustment of the threaded rod

Product Highlights

The Anvil® 92 Series C-Clamp offers secure attachment to structural members with a focus on adjustability and load-bearing capacity.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0500009063

Technical Specifications

• Rod Size: 3/8 in
• Flange Thickness: 3/4 in
• Load Capacity: 500 lb
• Material: Iron
• Series: 92 Series
• Finish: Hot-Dipped Galvanized
• Torque Rating: 5 ft.-lb.
• Standards: cULus, FM
