Asc Engineered Solutions 0390171262 7045 4x11/2 Ptd F/Thd E Clamp-T

Product Description

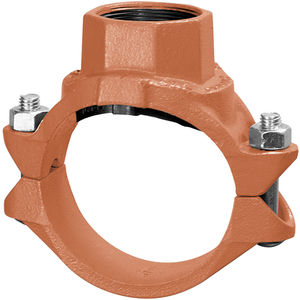

The ASC ENGINEERED SOLUTIONS 0390171262 Gruvlok® Clamp-T Branch Outlet, Series FIG 7045, joins pipes in wet and dry systems. Recommended for water service, diluted acids, alkalies solutions, and oil-free air. Features FNPT connection, SCH 40/STD schedule rating, and a pressure rating of 500 psi. Not for use in petroleum application.

• Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
• Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services
• Provides quick and easy outlet at any location along pipe

Product Highlights

The Gruvlok Clamp-T is ideal for plumbing, HVAC, fire protection, and industrial applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0390171262
• Country of Origin: Domestic

Technical Specifications

• Bolt Material: Steel
• Bolt Size: 1/2 x 2-3/4 in
• Clamp Material: Ductile Iron
• Color: Orange
• Connection Type: FNPT
• Domestic/Import: Domestic
• Finish: Rust Inhibiting Painted
• Gasket Material: Grade E EPDM
• Nominal Size: 4 x 1-1/2 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 7045
• Temperature Rating: -40 to 230 deg F
• Manufacturer: ASC Engineered Solutions
• Type: Clamp Pipe Tee
• Size A: 4" Clamp
• Size B: 4"
• Size C: 1-1/2"
• Standards: UL / ULC / FM
• Minimum Operating Temperature: -20 F
• Primary Use: Provides quick and easy outlet at any location along pipe
• Class: 150 lb
• Maximum Operating Temperature: 150 F
• Product Weight: 4.6
