Asc Engineered Solutions 0390014223 7050 2 Ptd Grooved 90 Elbow (2 in/90 deg) 7050-2

Product Description

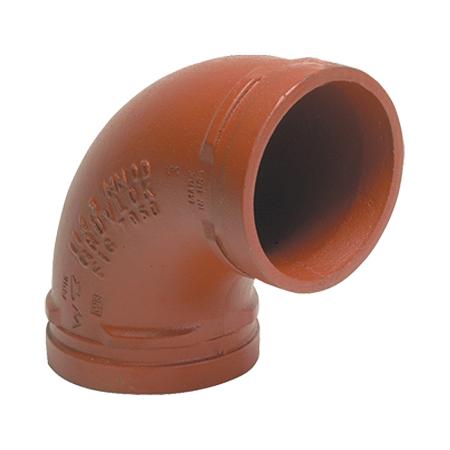

Asc Engineered Solutions 0390014223 is a 7050 series 90-degree ductile iron grooved elbow for 2 in nominal pipe, sized with a 2-3/8 in outside diameter and rated to 1000 psi. The fitting features a rust-inhibiting painted finish and is designed for grooved-end piping in wet and dry systems. It carries multiple industry approvals and is intended to provide uniform strength with minimal pressure drop.

• 90-degree grooved elbow for 2 in nominal pipe with 2-3/8 in outside diameter
• Ductile iron construction, rust-inhibiting painted finish, 1000 psi pressure rating
• Meets ASTM A536 Grade 65-45-12; cULus Listed; FM Approved; LPCB Approved; NSF/ANSI 61; VdS Certified

Product Highlights

7050 series 2 in grooved 90-degree ductile iron elbow; 2-3/8 in OD; 1000 psi; rust-inhibiting paint; multiple certifications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0390014223
• Country of Origin: Domestic

Technical Specifications

• Manufacturer: ASC Engineered Solutions
• Manufacturer Part Number: 0390014223
• Alternative Part Number: 7050-2
• Series: FIG 7050
• Model Number: 7050
• Product Name: 7050 2 Ptd Grooved 90 Elbow
• Product Category: Ductile iron pipe fittings
• Fitting Type: 90 deg Elbow
• Type: Standard
• Nominal Size: 2 in
• Outside Diameter: 2-3/8 in
• Material: Ductile Iron
• End Style: Grooved
• Pressure Rating: 1000 psi
• Finish: Rust-inhibiting painted
• Standards/Approvals: ASTM A536 Grade 65-45-12; cULus Listed; FM Approved; LPCB Approved; NSF/ANSI 61; VdS Certified
• Application: Grooved-end pipe systems for wet and dry systems
• Country Of Origin: US
• UPC: 690291106217
• Individual Item Weight: 1.940 Pound
