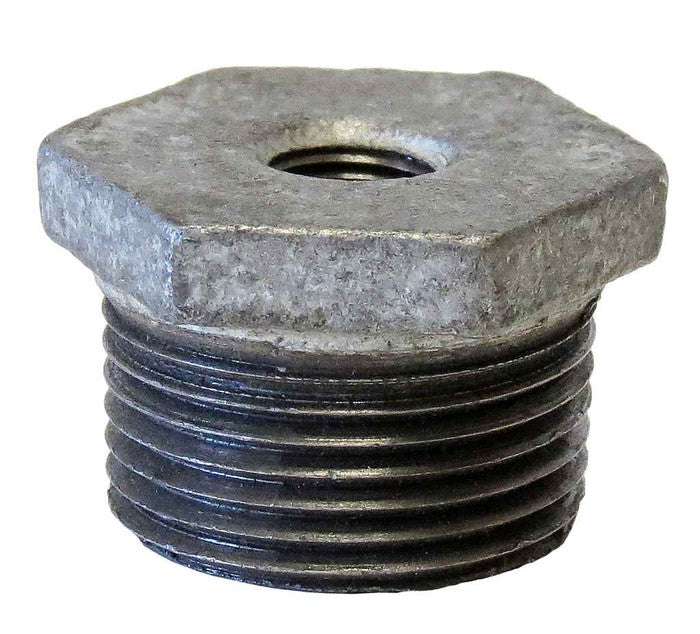

Asc Engineered Solutions 0319906921 1x1/8 Galv MI Hex Bushing

Product Description

The ASC ENGINEERED SOLUTIONS 0319906921 is a 1x1/8 Galv MI Hex Bushing. Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement. It conforms to ASME B16.3, and is cULus Listed, FM Approved, and NSF/ANSI 61. This bushing is suitable for plumbing applications.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

The ASC Engineered Solutions 0319906921 bushing fitting connects different pipe parts, facilitating gas and liquid movement with approvals from cULus, FM, and NSF/ANSI.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0319906921

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Galvanized
• Fitting/Connector Type: Bushing
• Material: Cast Iron
• Nominal Size: 1 x 1/8 in
• Pressure Class: 150/300 lb
• Series: FIG 383
• Temperature Rating: -20 to 150 deg F
• Type: Hex Head
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: MPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1
• Size 2: 0.125
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Bushings
• Product Type: Bushing
• Product Finish: Galvanized
• Product Material: Malleable Iron
• Product Weight: 0.24 lbs
