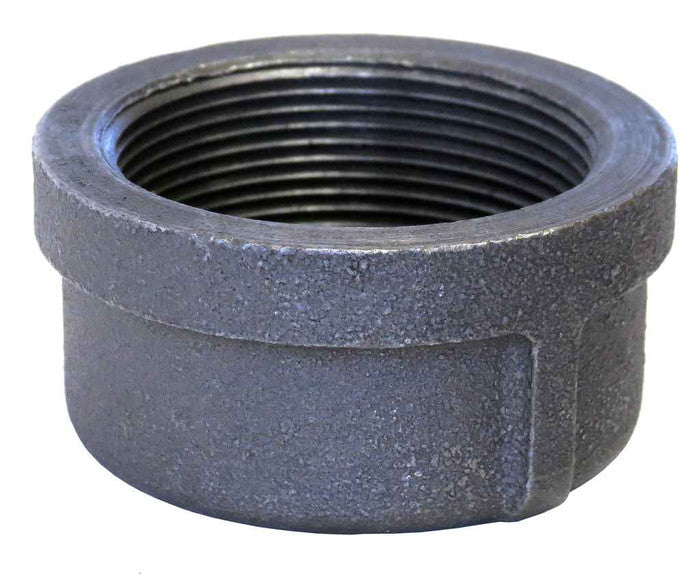

Asc Engineered Solutions 0318901006 4 in Black MI Cap

Product Description

The ASC ENGINEERED SOLUTIONS 0318901006 is a 4 in pipe cap from the Anvil Series FIG 1124. This standard cap is made of malleable iron with a black oxide finish. It connects two different pipe parts together and directs gas and liquid movement.

• FNPT end style
• Pressure rated to 300 psi
• Temperature rating of -20 to 150 deg F

Product Highlights

The ASC Engineered Solutions 0318901006 pipe cap is cULus Listed, FM Approved and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0318901006
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cap
• Material: Malleable Iron
• Nominal Size: 4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1124
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 4
• Size 2: 0
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Caps
• Product Type: Cap
• Product Finish: Black
• Product Material: Malleable Iron
