Asc Engineered Solutions 0311092605 4 x 3 Galv MI 150# Reducer

Product Description

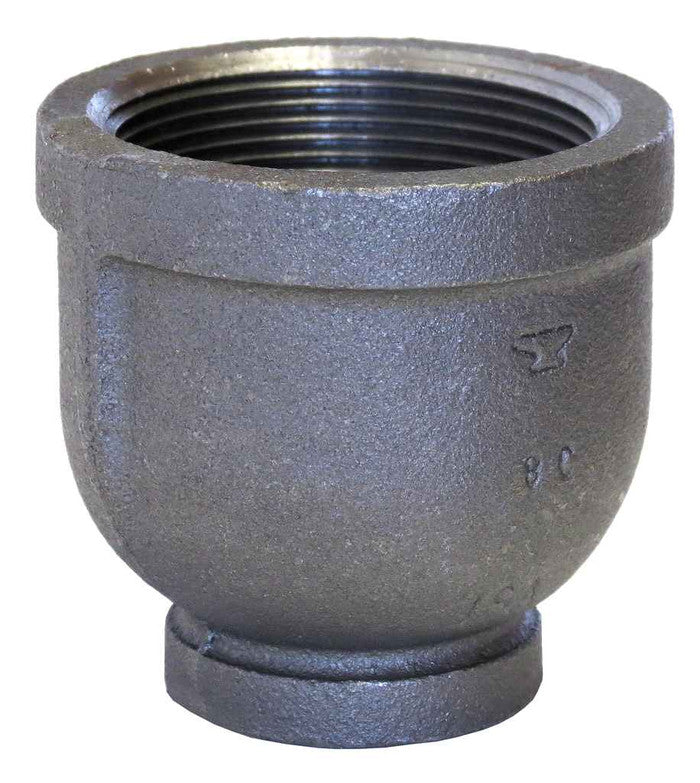

The ASC Engineered Solutions 0311092605 is a 4 x 3 inch galvanizing malleable iron pipe reducer. This fitting serves to connect two sections of pipe with differing diameters. It features FNPT end style and a 150 lb pressure class. The galvanized finish provides corrosion resistance. This reducer is suitable for plumbing and piping applications where a change in pipe size is required.

• FNPT end style
• 150 lb pressure class
• Galvanized finish for corrosion resistance

Product Highlights

4 x 3 inch galvanizing malleable iron pipe reducer with FNPT end style, 150 lb pressure class, and galvanized finish.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311092605

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: Reducing Coupling
• Material: Malleable Iron
• Nominal Size: 4 x 3 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1125
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 4
• Size 2: 3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Reducers
• Product Type: Reducer
• Product Finish: Galvanized
• Product Material: Malleable Iron
• Product Weight: 6.63 lbs
