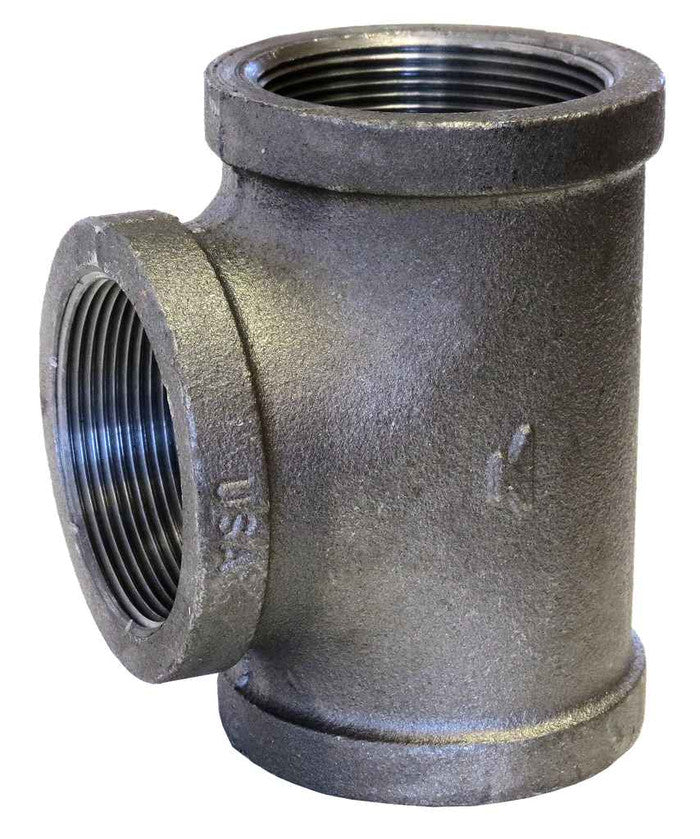

Asc Engineered Solutions 0311054605 3X3X2 Galv MI Tee

Product Description

The ASC ENGINEERED SOLUTIONS 0311054605 pipe reducing tee, from the FIG 1105R series, is designed to hold two different pipe parts together and direct gas and liquid movement. It is made from malleable iron with a galvanized finish. Suitable for plumbing applications.

• Connects two different pipe parts together
• Directs gas and liquid movement
• Compliant with ASME B16.3/B1.20.1 and ASTM A197 standards

Product Highlights

Durable malleable iron pipe fitting with galvanized finish, ideal for plumbing and gas applications. It conforms to industry standards and is cULus Listed, FM Approved, and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311054605

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 3 x 3 x 2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 3
• Size 2: 3
• Size 3: 2
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Galvanized
• Product Material: Malleable Iron
• Product Weight: 7.25 lbs
