Asc Engineered Solutions 0311044606 1 1/4x1/2x1 1/4 Galv Mi Tee

Product Description

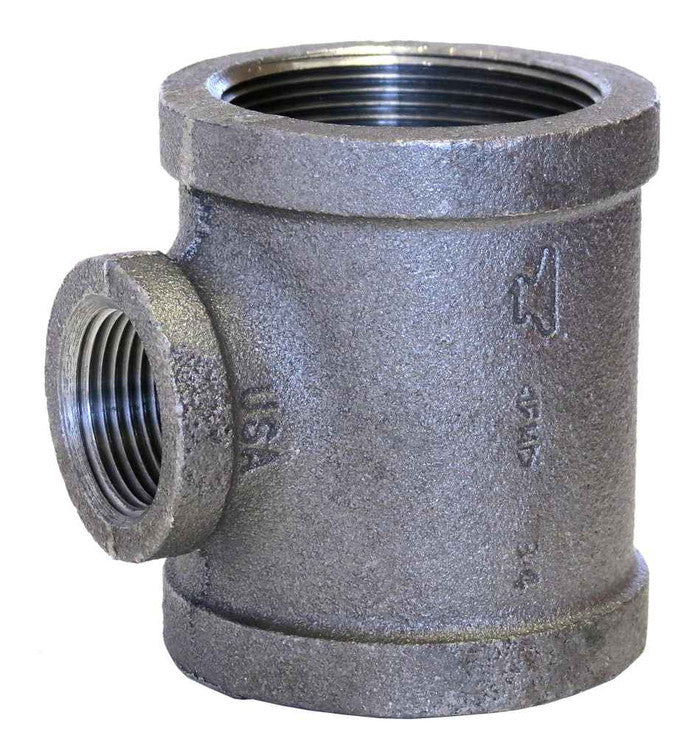

The ASC ENGINEERED SOLUTIONS 0311044606 is a pipe reducing tee. This standard tee, from the FIG 1105R series, connects two different pipe parts together and directs gas and liquid movement. It has a 1-1/4 x 1/2 x 1-1/4 inch nominal size, FNPT end style, and is made of galvanized malleable iron.

• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Temperature Rating: -20 to 150 deg F

Product Highlights

The ASC ENGINEERED SOLUTIONS 0311044606 pipe reducing tee is suitable for use in plumbing applications. It is cULus Listed, FM Approved and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311044606

Technical Specifications

• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 1-1/4 x 1/2 x 1-1/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Galvanized
• Product Material: Malleable Iron
