Asc Engineered Solutions 0311009807 1 1/2x1 Galv MI 90 Ell

Product Description

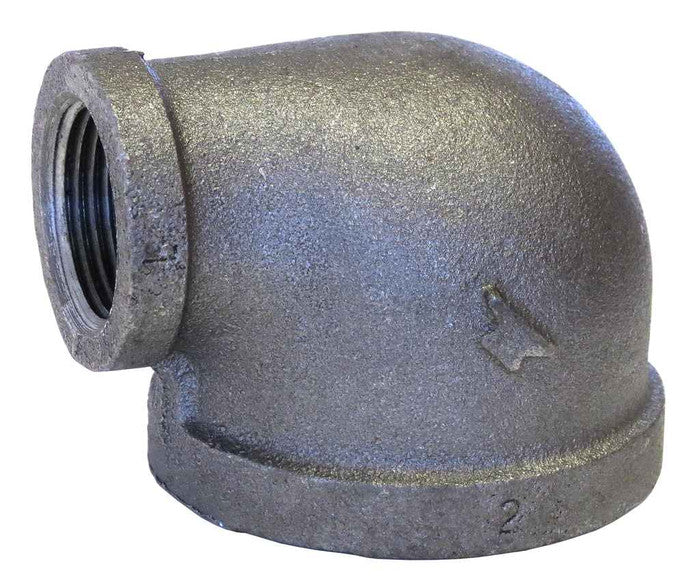

The ASC ENGINEERED SOLUTIONS 0311009807 pipe reducing elbow, Series FIG 1101R, is a 90-degree elbow designed to connect two different pipe parts together and direct gas and liquid movement. It has nominal size 1-1/2 x 1 in, FNPT end style, SCH 40/STD, 150 lb, 300 psi, and is made of malleable iron with a galvanized finish.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• Standards/Approval: ASME B16.3/B16.39, ASTM A197
• Standards/Approval: cULus Listed, FM Approved, NSF/ANSI 61

Product Highlights

This galvanized malleable iron 90-degree elbow fitting is suitable for plumbing applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311009807
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1.5
• Size 2: 1
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Weight: 1.06 lbs
