Asc Engineered Solutions 0311008007 3/4X3/8 Galv MI 90 Ell

Product Description

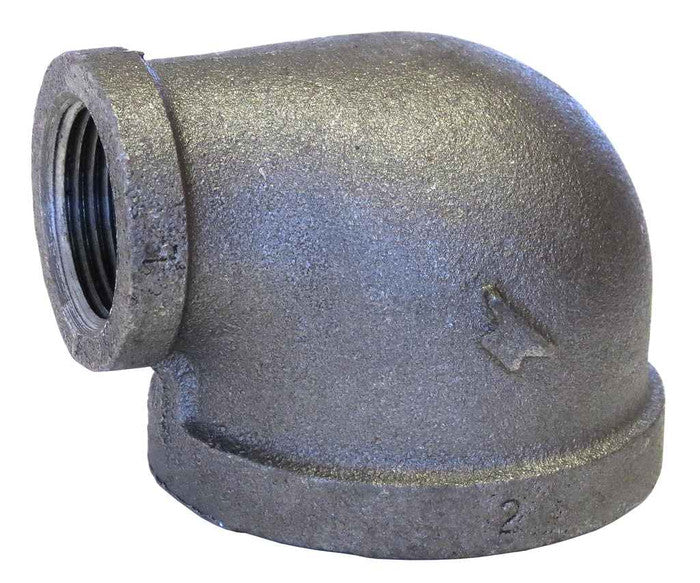

The ASC ENGINEERED SOLUTIONS 0311008007 pipe reducing elbow, from the FIG 1101R series, is designed to hold two different pipe parts together and direct gas and liquid movement. It has a 3/4 x 3/8 in nominal size and is made of malleable iron with a galvanized finish.

• Fitting/Connector Type: 90 deg Elbow
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 deg F

Product Highlights

The fitting is cULus Listed, FM Approved and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311008007

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3/4 x 3/8 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 0.75
• Size 2: 0.375
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Galvanized
• Product Material: Malleable Iron
