Asc Engineered Solutions 0311003008 6 Galv MI 90 Ell

Product Description

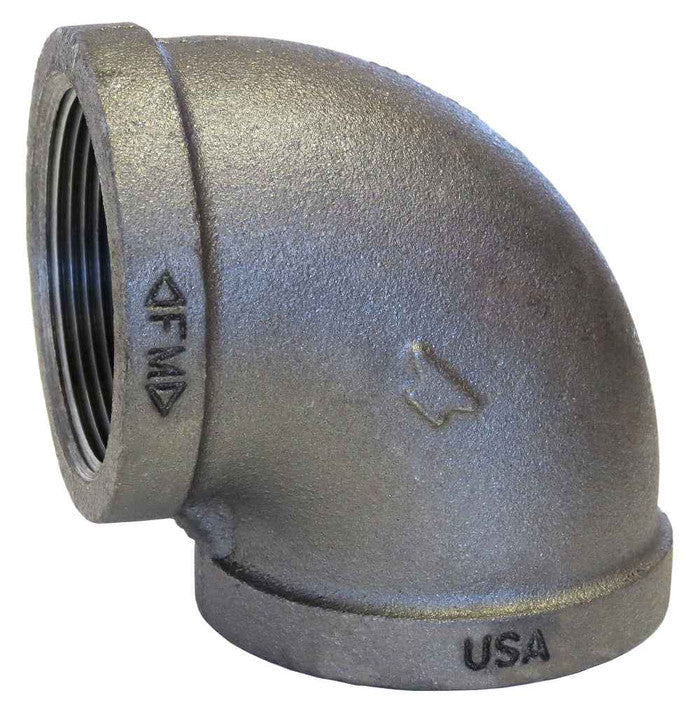

The ASC ENGINEERED SOLUTIONS 0311003008 is an Anvil Pipe Elbow, FIG 1101 series, designed to hold two different pipe parts together and direct gas and liquid movement. It features a 90-degree elbow fitting with a 6-inch nominal size. Constructed from malleable iron with a galvanized finish, it is suitable for standard applications.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3/B1.20.1
• ASTM A197

Product Highlights

The elbow fitting is suitable for plumbing applications. It is cULus Listed, FM Approved, and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311003008
• Country of Origin: Domestic

Technical Specifications

• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 6 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 6
• Size 2: 6
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Galvanized
• Product Material: Malleable Iron
