Asc Engineered Solutions 0311000202 1/8 Galv MI 150# 90 Ell

Product Description

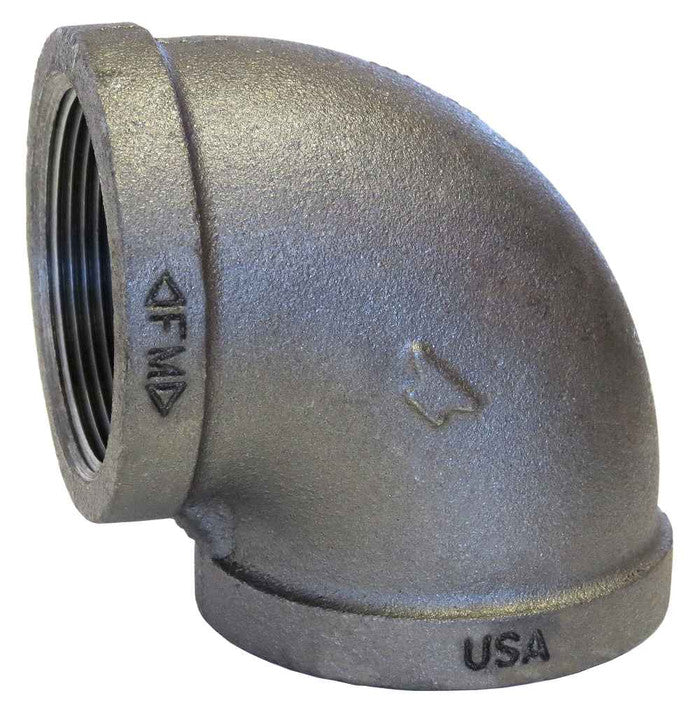

The ASC ENGINEERED SOLUTIONS 0311000202 is an Anvil Pipe Elbow, Standard, Series FIG 1101. This fitting/connector is a 90 deg Elbow with a 1/8 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi. It is made of Malleable Iron, Galvanized, and can withstand temperatures from -20 to 150 deg F.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3/B1.20.1
• ASTM A197

Product Highlights

This galvanized malleable iron pipe fitting connects two pipe parts at a 90-degree angle and is suitable for gas and liquid movement.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0311000202
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 1/8 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Finish Specification: ASTM A-153
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Galvanized
• Product Material: Malleable Iron
