Asc Engineered Solutions 0310544408 11/2x1/2 xh blk mi aar reducer

Product Description

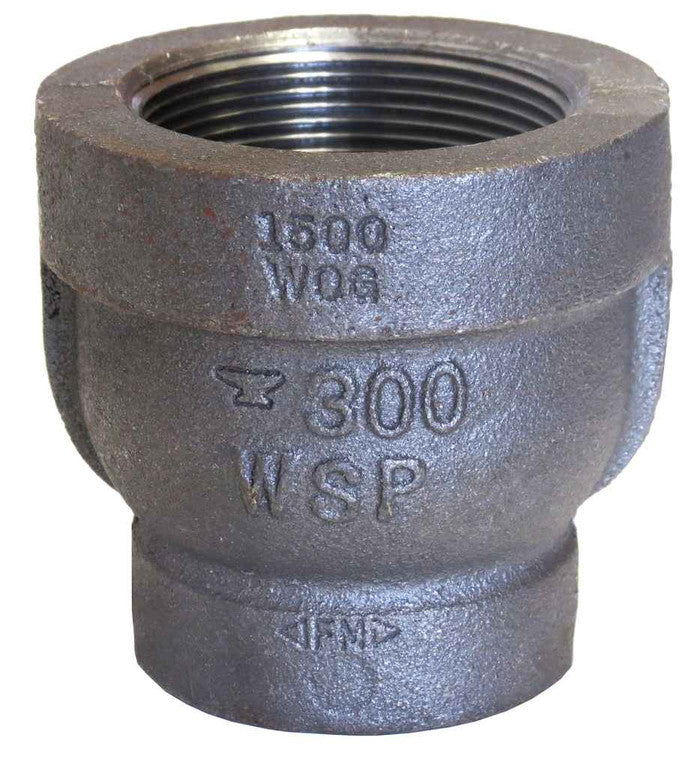

The ASC ENGINEERED SOLUTIONS 0310544408 is an Anvil Pipe Reducer, FIG 1167 Series reducing coupling fitting/connector. It joins two different pipe parts together and directs gas and liquid movement. It has a 1-1/2 x 1/2 in nominal, FNPT end style, and a 2-11/16 in length.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

The reducer has a pressure class of 300 lb and a 1500 psi pressure rating. It is made of malleable iron and suitable for temperatures from -20 to 150 deg F.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310544408

Technical Specifications

• End Style: FNPT
• Fitting/Connector Type: Reducing Coupling
• Length: 2-11/16 in
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1/2 in
• Pressure Class: 300 lb
• Pressure Rating: 1500 psi
• Schedule Rating: SCH 80/XS, SCH 80/XH
• Series: FIG 1167
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1.5
• Size 2: 1/2
• Strength: XH
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Product Finish: Black
• Product Weight: 1.62 lbs
• Domestic/Import: Domestic
