Asc Engineered Solutions 0310502000 3 XH BLK MI AAR 90 Ell

Product Description

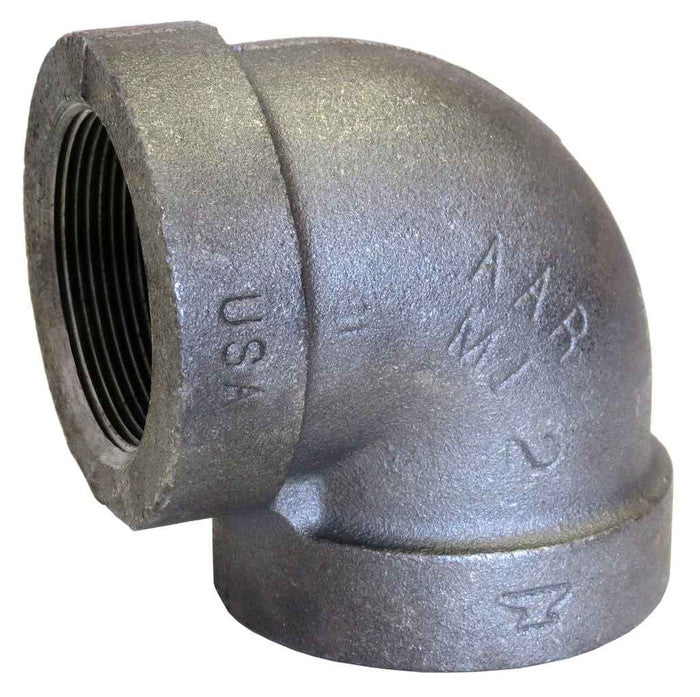

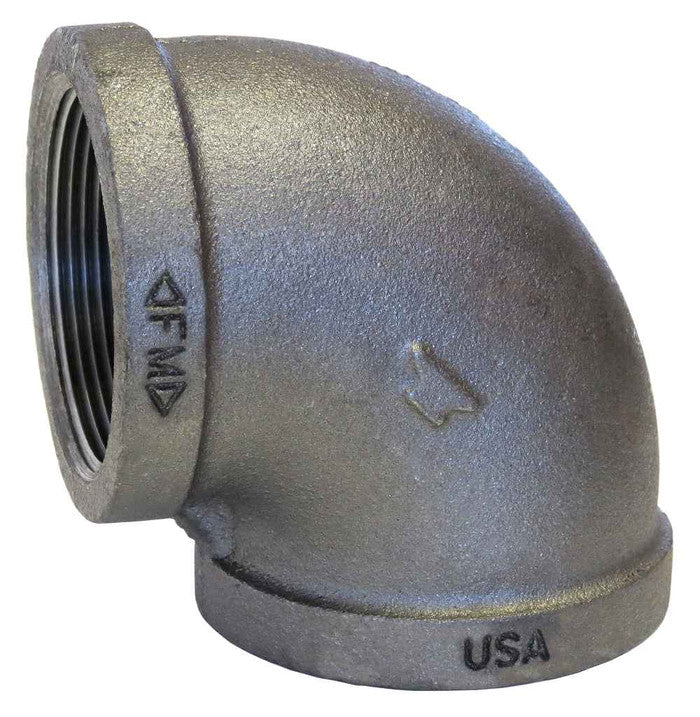

The ASC Engineered Solutions 0310502000 is a 3 in 90 deg Elbow. This fitting/connector is made of malleable iron with a black oxide finish. It conforms to ASME B16.3/B1.20.1 standards and is suitable for use in plumbing applications.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• cULus Listed
• FM Approved

Product Highlights

The fitting has a pressure rating of 1000 psi and a temperature rating of -20 to 150 deg F.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310502000
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3 in
• Pressure Class: 300 lb
• Pressure Rating: 1000 psi
• Schedule Rating: SCH 80/XH
• Series: FIG 1161
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: XH
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
