Asc Engineered Solutions 0310080809 1-1/4 Blk Mi Rh Coupling

Product Description

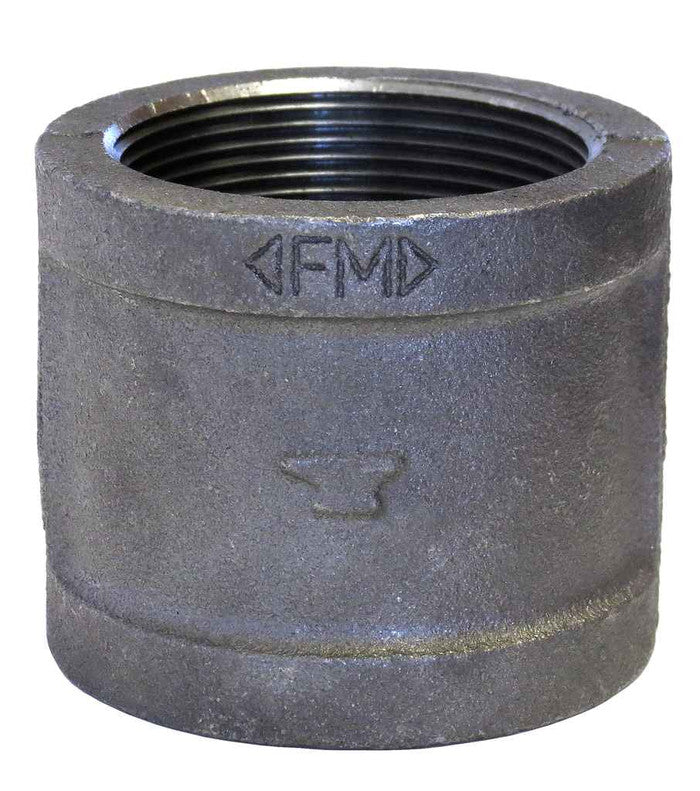

The ASC ENGINEERED SOLUTIONS 0310080809 Anvil® Pipe Coupling, is a right hand coupling with a FIG 1121 series. This coupling is designed to hold two different pipe parts together and direct gas and liquid movement. It has a 1-1/4 in nominal size and is made of malleable iron with a black oxide finish.

• FNPT end style
• Pressure rated to 300 psi
• Temperature Rating of -20 to 150 deg F

Product Highlights

This malleable iron pipe fitting is suitable for plumbing applications. It is cULus Listed, FM Approved and NSF/ANSI 61 certified.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310080809
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Coupling
• Length: 1-15/16 in
• Material: Malleable Iron
• Nominal Size: 1-1/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: FIG 1121
• Temperature Rating: -20 to 150 deg F
• Type: Right Hand
• Manufacturer: ASC Engineered Solutions
• Country of Origin: USA
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Couplings
• Product Type: Coupling
• Product Finish: Black
• Product Material: Malleable Iron
