Asc Engineered Solutions 0310067004 1 Black Mi 150# Y-Branch Fig. 1108

Product Description

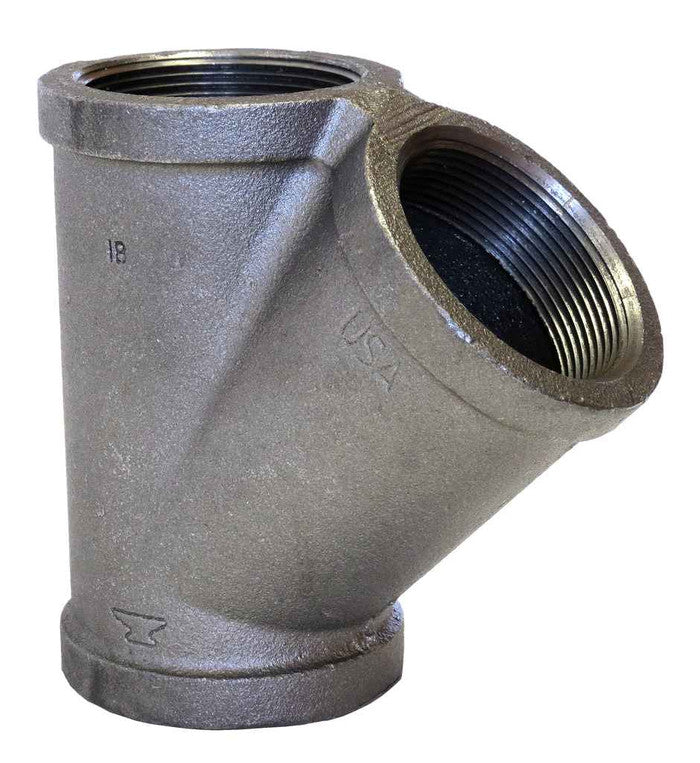

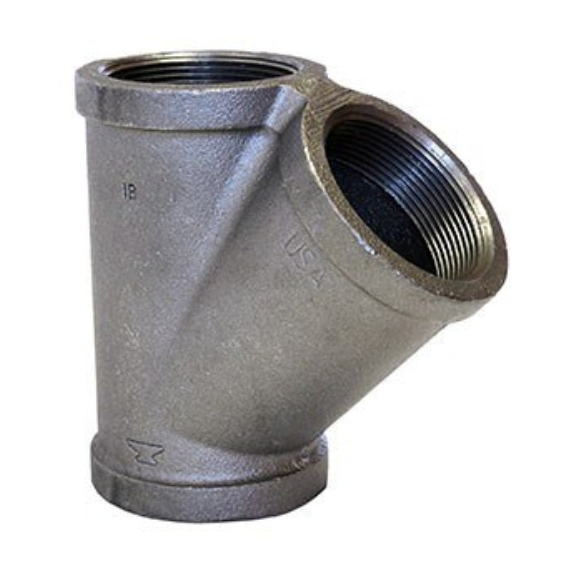

The Anvil® ASC Engineered Solutions 0310067004 pipe wye fitting is designed to hold two different pipe parts together and direct gas and liquid movement. It has a 1 in nominal size and FNPT end style. Constructed from malleable iron with a black finish.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ANSI/NSF 61
• ASME B16.3

Product Highlights

This pipe wye fitting is suitable for use in plumbing applications. It is cULus Listed and FM Approved.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310067004

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black
• Fitting/Connector Type: Wye
• Length: 3-5/16 in
• Material: Malleable Iron
• Nominal Size: 1 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1108
• Temperature Rating: -20 to 350 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1
• Size 2: 1
• Size 3: 1
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Other Fittings
• Product Type: Fitting
• Product Weight: 0.86 lbs
• Item Number: 1MIY
• Brand: ASC Engineered Solutions
• Vendor Part Number: 0310067004
