Asc Engineered Solutions 0310046602 11/2x11/4x1 Blk Mi Tee

Product Description

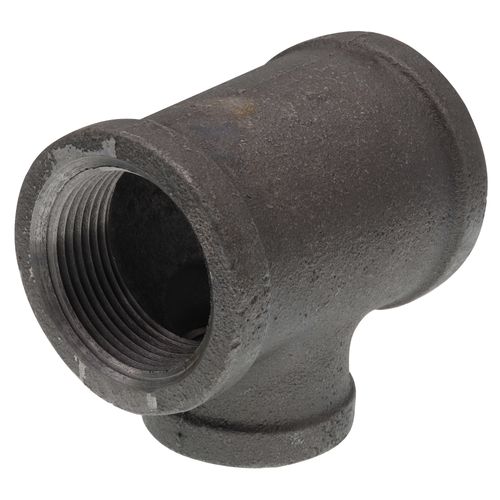

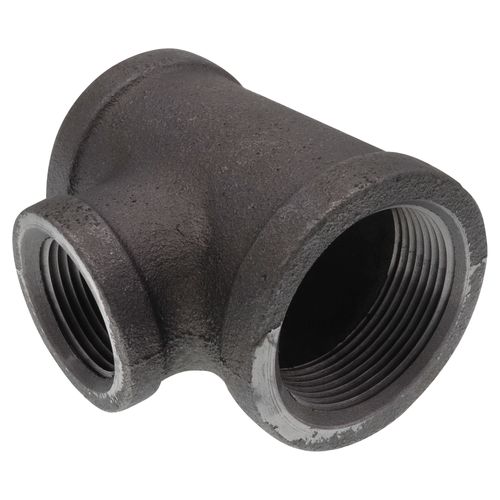

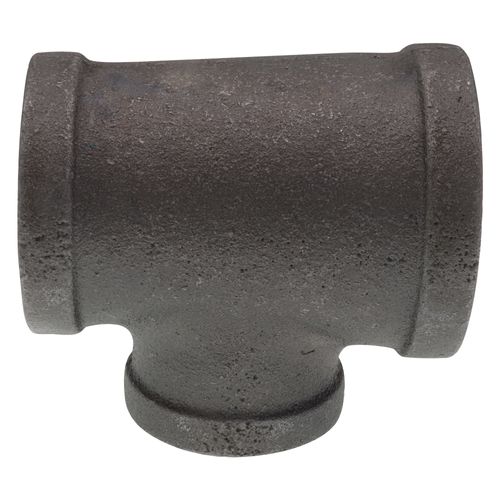

The ASC ENGINEERED SOLUTIONS 0310046602 Anvil® Pipe Reducing Tee, Series FIG 1105R, connects two different pipe parts together and directs gas and liquid movement. It has a nominal size of 1-1/2 x 1-1/4 x 1 in, FNPT end style, and is made of malleable iron with a black oxide finish.

• Fitting/Connector Type: Tee
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 deg F

Product Highlights

This malleable iron pipe fitting conforms to ASME B16.3 and is cULus Listed, FM Approved, and NSF/ANSI 61.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310046602
• Country of Origin: Domestic

Technical Specifications

• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Length: 3-3/16 in
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1-1/4 x 1 in
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Thread Type: Female
• Connection Type: Threaded
• Dimensions Specification: ASME B16.3
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1.5
• Size 2: 1.25
• Size 3: 1
• Strength: STD
• Thread Specification: ASME B1.20.1
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Black
• Material Construction: Malleable Iron
• Connection Size 1: 1-1/2 in
• Connection Size 2: 1-1/4 in
• Connection Size 3: 1 in
• Connection Type 1: FNPT
• Connection Type 2: FNPT
• Connection Type 3: FNPT
• Dimension Standards: ASME B16.3/B16.14/B.1.20.1
• Product Material: Malleable Iron
