Asc Engineered Solutions 0310043807 11/4x1x1/2 Blk Mi Tee

Product Description

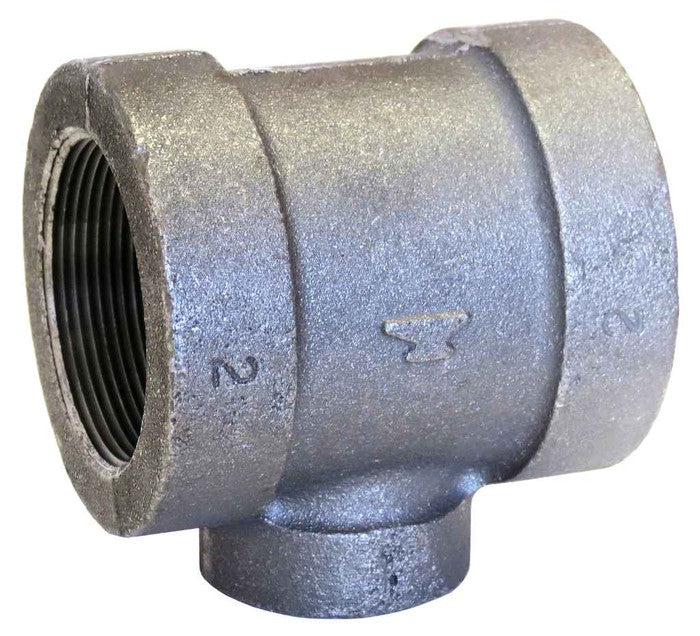

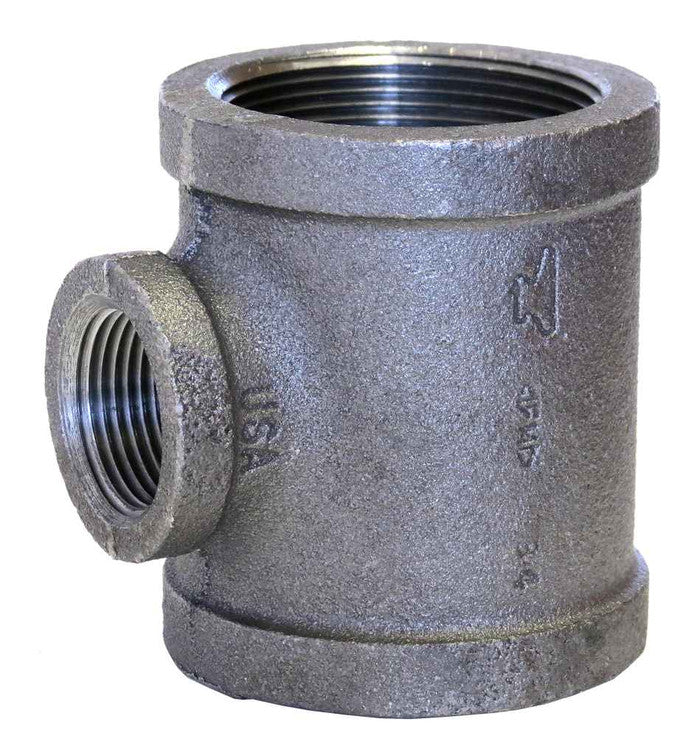

The ASC ENGINEERED SOLUTIONS 0310043807 is a pipe reducing tee. This standard tee, from the FIG 1105R series, features FNPT end style and is made of malleable iron with a black oxide finish. It connects two different pipe parts together and directs gas and liquid movement.

• Fitting/Connector Type: Tee
• Temperature Rating: -20 to 150 deg F
• Pressure Rating: 300 psi

Product Highlights

The ASC Engineered Solutions 0310043807 tee is suitable for various plumbing applications. Standards/Approval: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310043807

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Length: 2-5/8 in
• Material: Malleable Iron
• Nominal Size: 1-1/4 x 1 x 1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Size 1: 1.25
• Size 2: 1
• Size 3: 1/2
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Black
