Asc Engineered Solutions 0310031208 3 Blk Mi 150# Tee

Product Description

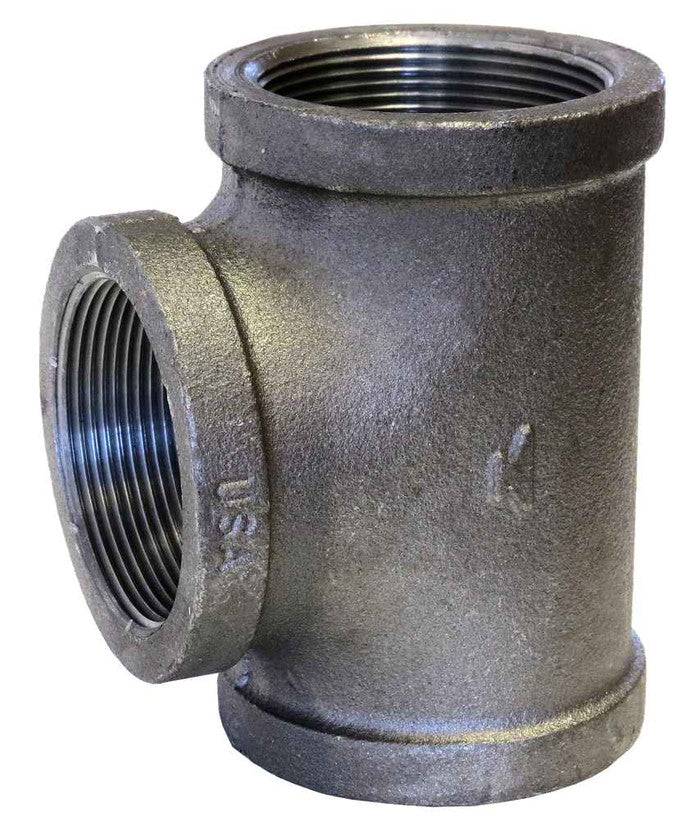

The ASC ENGINEERED SOLUTIONS 0310031208 Anvil Straight Pipe Tee, Series FIG 1105, is designed to hold two different pipe parts together and direct gas and liquid movement. It has a 3 in nominal size and is made from malleable iron with a black oxide finish.

• FNPT end style
• Pressure rated to 300 psi
• Temperature Rating: -20 to 150 deg F

Product Highlights

This tee fitting is suitable for plumbing applications and conforms to ASME B16.3 standards. cULus Listed, FM Approved, NSF/ANSI 61.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310031208

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• SKU: 310031208
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 3
• Size 2: 3
• Size 3: 3
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Tees
• Product Type: Tee
• Product Finish: Black
• Product Material: Malleable Iron
• Product Weight: 7.07 lbs
