Asc Engineered Solutions 0310030002 anvil straight pipe tee 3/4 in

Product Description

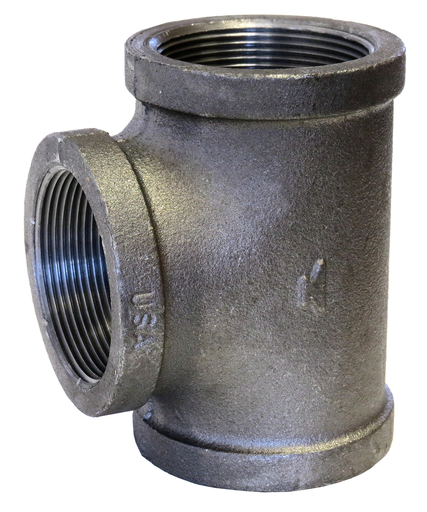

The ASC ENGINEERED SOLUTIONS 0310030002 Anvil Straight Pipe Tee, Series FIG 1105, is a 3/4 inch nominal FNPT fitting. Constructed from malleable iron with a black oxide finish, this tee is rated for a 150 lb pressure class and 300 psi, operating efficiently from -20 to 150 deg F. It is designed for reliable pipe connections in various systems.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3 compliant.
• cULus Listed, FM Approved, and NSF/ANSI 61 certified.

Product Highlights

Durable malleable iron tee fitting for reliable pipe connections in demanding environments.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310030002
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105
• Temperature Rating: -20 to 150 deg F
• Category: Black Iron
