Asc Engineered Solutions 0310029806 1/2 Blk Mi 150# Tee

Product Description

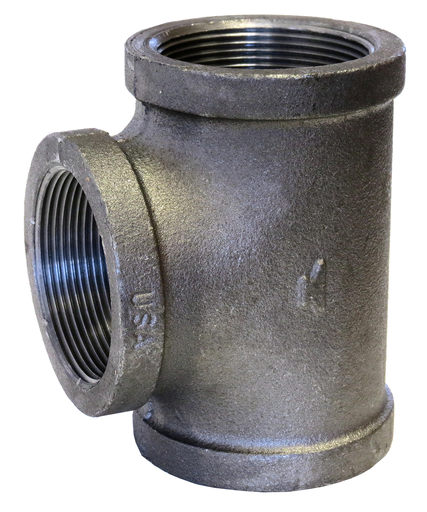

The ASC ENGINEERED SOLUTIONS 0310029806 Straight Pipe Tee, Series FIG 1105, is designed for joining pipes. This tee fitting has a 1/2 in nominal FNPT connection, SCH 40/STD, and is rated to 150 lb, 300 psi. Constructed from malleable iron with a black oxide finish, it withstands temperatures from -20 to 150 deg F.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61
• Suitable for joining pipes in various applications.

Product Highlights

Durable malleable iron tee fitting for connecting pipes, withstanding pressure up to 300 psi.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310029806
• Country of Origin: US

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Country of Origin: USA
• Size 1: 0.5
• Size 2: 0.5
• Size 3: 0.5
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• End Conn Size 3: FPT
• Strength: STD
• UL/FM: Yes
• Material Specification: ASTM A-197
• Dimensions Specification: ASME B16.3
• Thread Specification: ASME B1.20.1
• Pressure Rating Specification: ASME B16.3
• Brand: ASC Engineered Solutions
• Category: Black Iron
• Type: Pipe Tee
• Size A: 1/2"
• Size B: 1/2"
• Size C: 1/2"
• Connection Type A: Female NPT
• Connection Type B: Female NPT
• Connection Type C: Female NPT
• Maximum Operating Pressure: 300 psi
• Standards: ASME B16.3, ASTM A-197, ASTM A-153, ASME B1 20.1, ASME B16.3
• Minimum Operating Temperature: -20 F
• Maximum Operating Temperature: 150 F
• Primary Use: Joining Pipes
• Class: 150 lb
• Schedule: 40
