Asc Engineered Solutions 0310028204 Street Elbow 2 in

Product Description

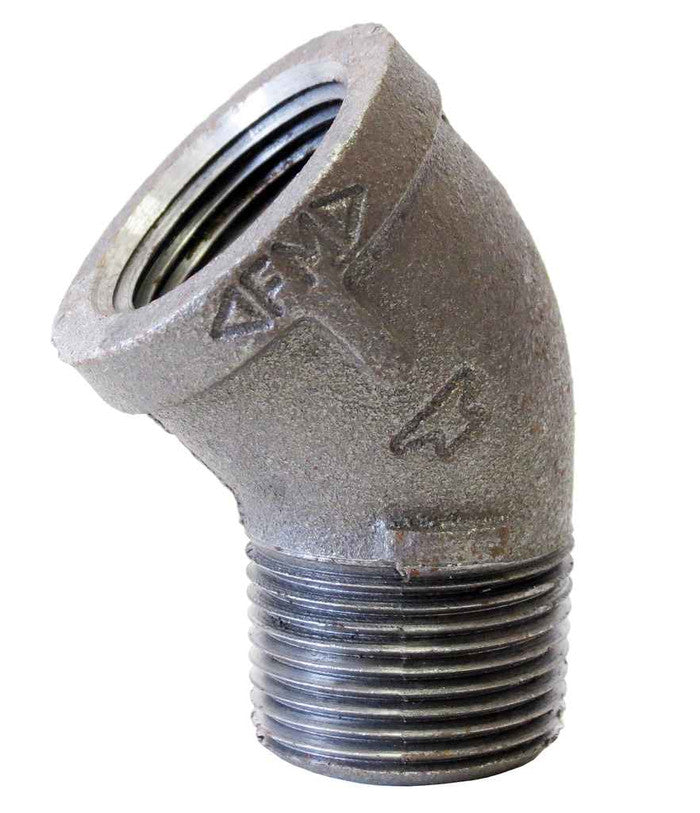

The ASC ENGINEERED SOLUTIONS 0310028204 street elbow, from the FIG 1104 series, is a 45-degree elbow fitting designed to connect pipes. Constructed from malleable iron with a black oxide finish, it ensures durability and corrosion resistance. This fitting is suitable for gas and liquid movement applications.

• Constructed from malleable iron with black oxide finish
• Fitted with MNPT x FNPT end style
• Complies with ASME B16.3 standard

Product Highlights

Durable malleable iron construction, black oxide finish, and compliance with industry standards make it a reliable choice for various piping applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310028204

Technical Specifications

• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Nominal Size: 2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1104
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: MPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 2
• Size 2: 2
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Product Group: Pipe Fittings
• Product Subgroup: Street Elbows
• Product Type: Street Elbow
• Product Finish: Black
• Model Number: 0310028204
• Brand: ASC ENGINEERED SOLUTIONS
• Additional Information: ASTM A197 Material Standard, Domestic
• Fitting Type: Elbow
• Connection Type 1: Threaded
• Connection Type 2: Threaded
• Connection Type: Threaded|Threaded
