Asc Engineered Solutions 0310027404 3/4 Blk Mi 150# 45 St Ell

Product Description

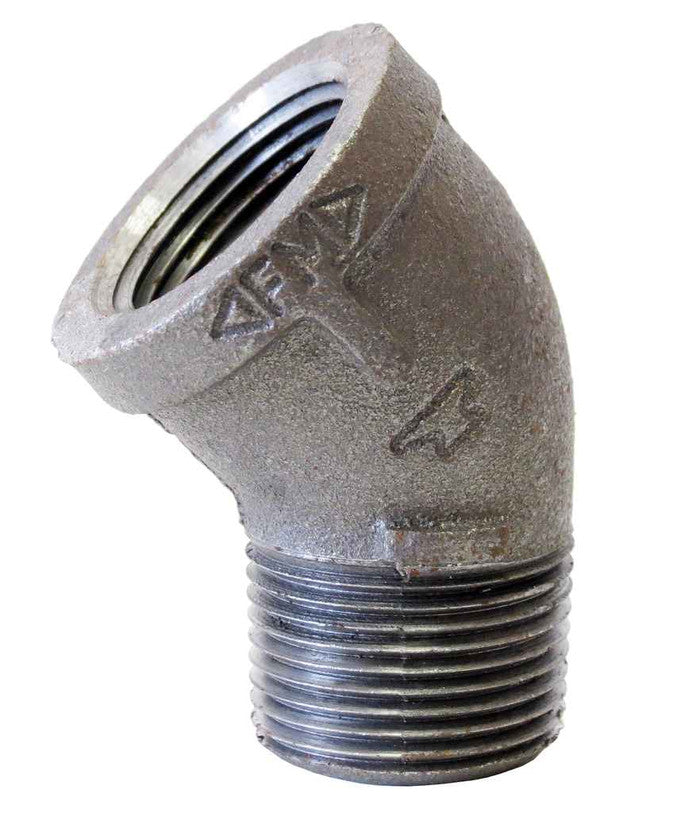

The ASC ENGINEERED SOLUTIONS 0310027404 is an Anvil Street Elbow, FIG 1104 Series, designed to hold two different pipe parts together and direct gas and liquid movement. It conforms to ASME B16.3 and is suitable for temperatures between -20 to 150 deg F.

• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Pressure Class: 150 lb

Product Highlights

This 45-degree elbow fitting is made from black oxide-finished malleable iron, suitable for connecting pipes in various applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310027404
• Country of Origin: USA

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1104
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Type: Street Pipe Elbow
• Size A: 3/4"
• Size B: 3/4"
• Angle: 45
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: FNPT
• Connection Type 2: MNPT
• Connection Type: FNPT|MNPT
• Dimension Standards: ASME B16.3/B1.20.1
• Material Construction: Malleable Iron
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 0.75
• Size 2: 0.75
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 45 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
• Product Weight: 0.37 lbs
