Asc Engineered Solutions 0310024807 3 Black MI 150# 45 Ell

Product Description

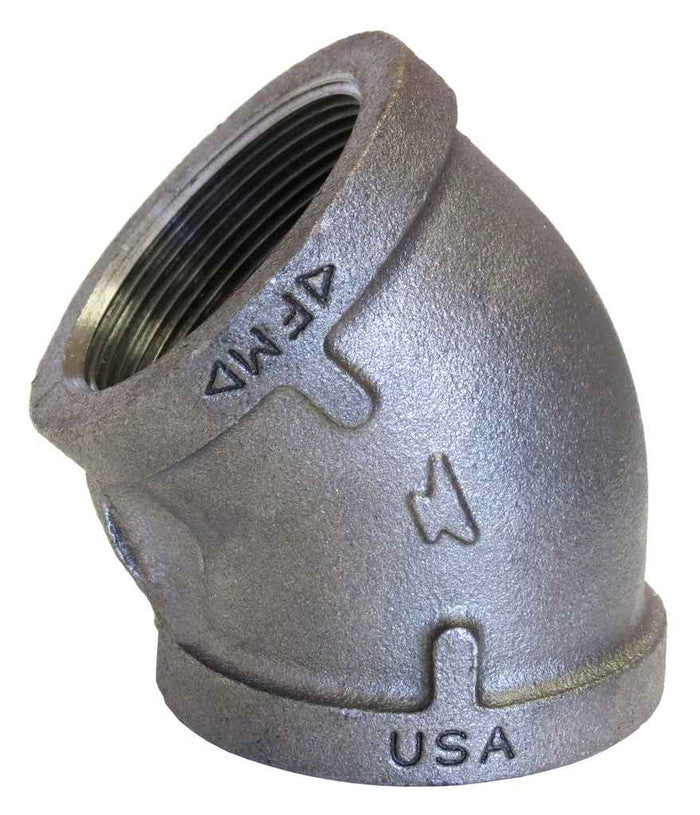

The ASC ENGINEERED SOLUTIONS 0310024807 is an Anvil Pipe Elbow, FIG 1102 Series, used to hold two different pipe parts together and direct gas and liquid movement. This standard 45 deg elbow has a 3 in Nominal, FNPT, SCH 40/STD, and 150 lb. fitting/connector type.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

The 0310024807 elbow fitting is constructed from malleable iron with a black oxide finish and is suitable for use in a variety of plumbing applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310024807

Technical Specifications

• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1102
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• Material Specification: ASTM A-197
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Street Elbows
• Product Type: Street Elbow
• Product Finish: Black
