Asc Engineered Solutions 0310016407 3/4 Blk Mi 150# 90 St Ell

Product Description

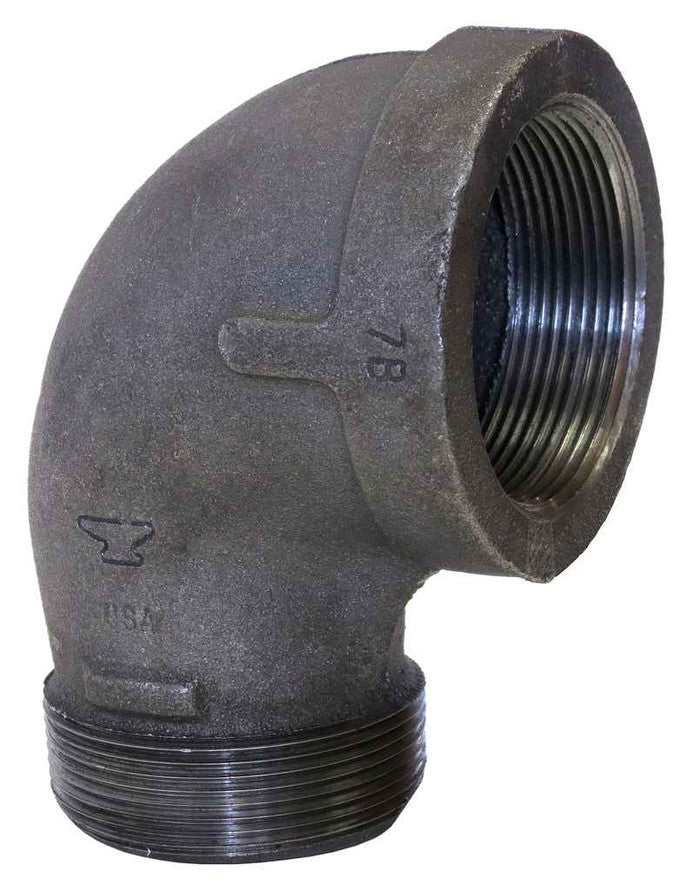

The ASC ENGINEERED SOLUTIONS 0310016407 is a Anvil Straight Street Elbow, FIG 1103 series, this 90-degree elbow fitting connects different pipe parts together and directs gas and liquid movement. It has a 3/4 in nominal size with MNPT x FNPT end style, SCH 40/STD schedule, and 150 lb pressure class.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

This street elbow is suitable for plumbing applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310016407
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1103
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: MPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 0.75
• Size 2: 0.75
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Street Elbows
• Product Type: Street Elbow
• Product Finish: Black
• Product Material: Malleable Iron
• Angle: 90
