Product Description

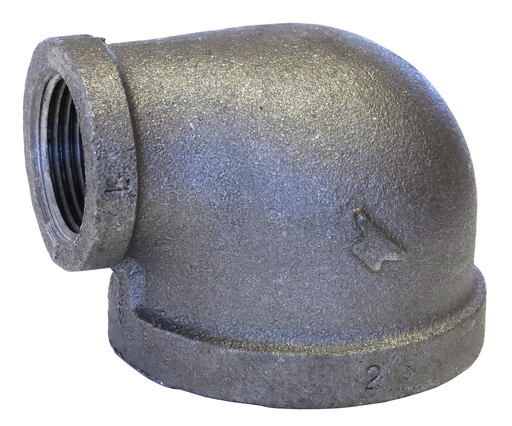

The ASC ENGINEERED SOLUTIONS 0310008404 is a 90-degree elbow designed to connect two pipes of different sizes. This Anvil® FIG 1101R series fitting is made from malleable iron with a black oxide finish. It is suitable for directing gas and liquid movement in various applications.
- Fitting/Connector Type: 90 deg Elbow
- Nominal Size: 1 x 3/4 in
- Pressure Rating: 300 psi
Product Highlights
Durable malleable iron pipe fitting with a black oxide finish, ideal for connecting 1-inch and 3/4-inch pipes at a 90-degree angle.
Product Information
Standard Information
-
Brand: ASC ENGINEERED SOLUTIONS
-
Manufacturer Part Number: 0310008404
-
Country of Origin: Domestic
Technical Specifications
-
Domestic/Import: Domestic
-
End Style: FNPT
-
Finish: Black Oxide
-
Fitting/Connector Type: 90 deg Elbow
-
Material: Malleable Iron
-
Nominal Size: 1 x 3/4 in
-
Pressure Class: 150 lb
-
Pressure Rating: 300 psi
-
Series: FIG 1101R
-
Temperature Rating: -20 to 150 deg F
-
Manufacturer: ASC Engineered Solutions
-
Country of Origin: USA
-
Weight: 0.56 lbs
-
Size 1: 1
-
Size 2: 0.75
-
End Conn Size 1: FPT
-
End Conn Size 2: FPT
-
Strength: STD
-
UL/FM: Yes
-
Material Specification: ASTM A-197
-
Dimensions Specification: ASME B16.3
-
Thread Specification: ASME B1.20.1
-
Pressure Rating Specification: ASME B16.3
-
Category: Black Iron
-
Product Group: Pipe Fittings
-
Product Subgroup: Elbows
-
Product Type: 90° Elbow
-
Product Finish: Black
-
Product Material: Malleable Iron
-
Ul Fm: Yes
