Asc Engineered Solutions 0310007208 3/8x1/8 Blk Mi 90 Ell

Product Description

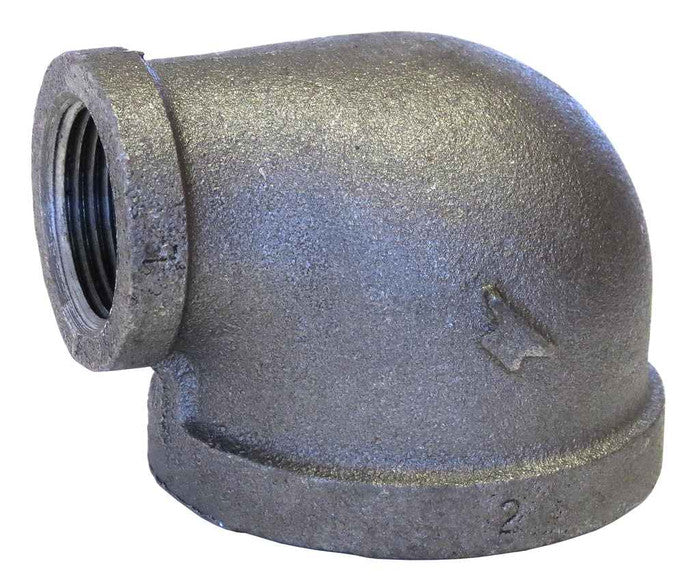

The ASC ENGINEERED SOLUTIONS 0310007208 pipe reducing elbow, from the FIG 1101R series, is a 90-degree elbow with 3/8 x 1/8 inch nominal FNPT connections. Constructed from malleable iron with a black oxide finish, it withstands pressures up to 300 psi and temperatures from -20 to 150 deg F. Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

This 90-degree elbow is suitable for connecting pipe sections in plumbing and gas systems, providing a secure and reliable connection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310007208

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3/8 x 1/8 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 0.375
• Size 2: 0.125
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
• Product Weight: 0.12 lbs
• Dimensions Specification: ASME B16.3
