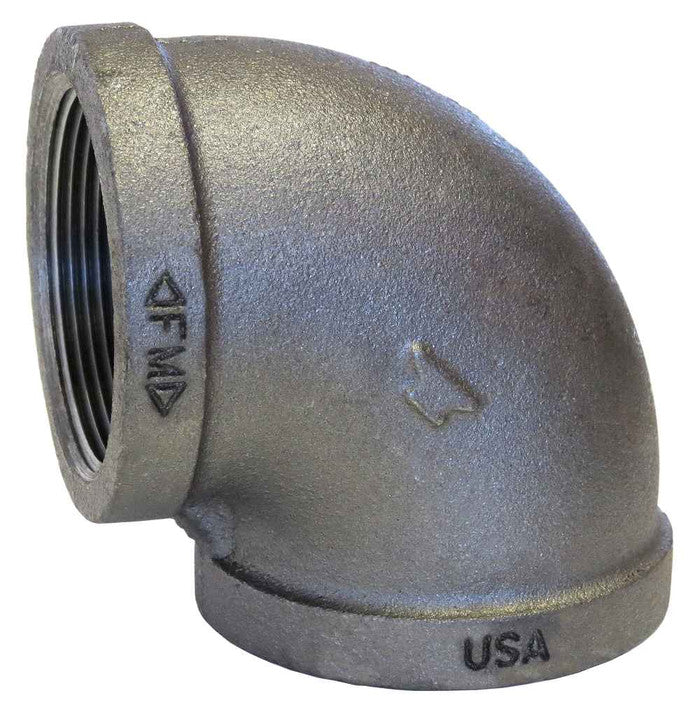

Asc Engineered Solutions 0310003009 6 Blk Mi 150# 90 Ell

Product Description

The ASC ENGINEERED SOLUTIONS 0310003009 is an Anvil Pipe Elbow, FIG 1101 Series, designed to hold two different pipe parts together and direct gas and liquid movement. It has a 90-degree elbow fitting/connector type with a 6-inch nominal size and FNPT end style. Made from malleable iron with a black oxide finish.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3
• cULus Listed

Product Highlights

This standard pipe elbow is suitable for various plumbing applications, providing a secure and reliable connection.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310003009

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 6 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 6
• Size 2: 6
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
• Product Weight: 23 lbs
