Asc Engineered Solutions 0310002605 4 Blk Mi 90 Ell

Product Description

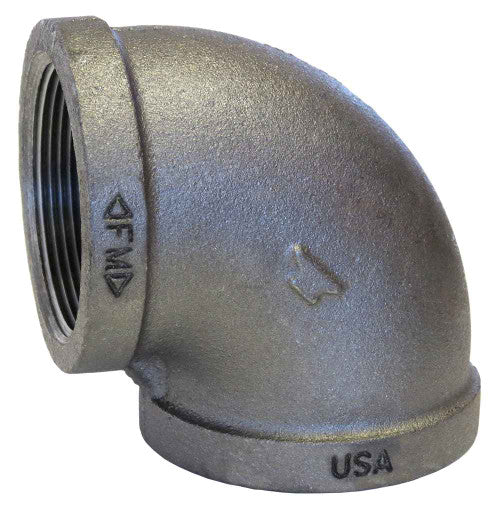

The ASC ENGINEERED SOLUTIONS 0310002605 is a standard Anvil Pipe Elbow, FIG 1101 Series, designed to hold two different pipe parts together and direct gas and liquid movement. It has a 4 in nominal size with FNPT end style. Constructed from malleable iron with a black oxide finish, it is rated to 300 psi.

• Fitting/Connector Type: 90 deg Elbow
• Standards/Approval: ASME B16.3/B1.20.1, ASTM A197, cULus Listed, FM Approved, NSF/ANSI 61
• Temperature Rating: -20 to 150 deg F

Product Highlights

The fitting is suitable for use in a variety of applications. It conforms to ASME B16.3/B1.20.1 and ASTM A197 standards.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310002605

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Manufacturer: ASC Engineered Solutions
• Manufacturer Ref: 0310002605
