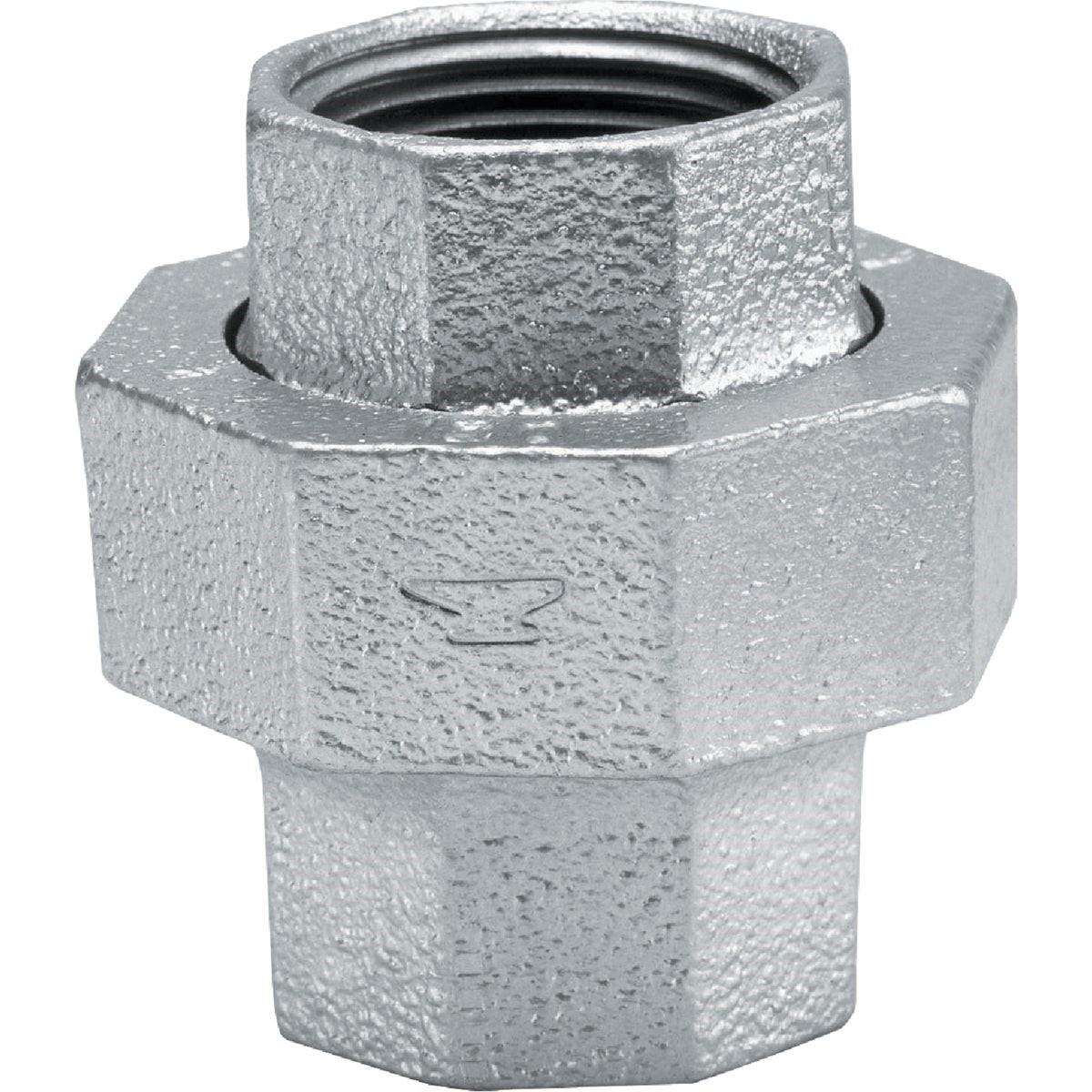

Asc 8700163358 Malleable Iron Galvanized Union 3/8 In. Fpt

Product Description

The ASC ENGINEERED SOLUTIONS 8700163358 is a 3/8-inch female pipe thread (FPT) malleable iron galvanized union rated for Class 150 service. This fitting connects two sections of threaded pipe while allowing for easy disconnection without cutting or rotating the line. The galvanized finish provides corrosion resistance for use in wet or exposed environments. Manufactured to meet Federal Specification WW-U-531C and ANSI B-16.39 for malleable iron unions, it is a standard choice for licensed plumbers and pipefitters working on low-pressure piping systems in residential and light commercial applications.

This union is suited for use in water supply, gas distribution, and general-purpose threaded piping systems where periodic disassembly of a line is required. The 3/8-inch FPT connections on both ends accept standard NPT-threaded pipe. It is commonly installed in boiler rooms, mechanical rooms, and utility piping runs where code-compliant, durable fittings are required. Sold individually.

Key Features

• Malleable iron construction with galvanized finish for corrosion resistance
• 3/8-inch FPT connections on both ends — standard NPT thread form
• Class 150 pressure rating per ANSI B-16.39
• Meets Federal Specification WW-U-531C for malleable iron unions
• Dimensions conform to ANSI B-16.14; pipe threads per ANSI B-2.1
• Allows line disassembly without rotating or cutting pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8-inch NPT threaded piping systems in residential and light commercial plumbing, hydronic heating, and general mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and IPC or IFGC requirements. Depressurize and drain the piping system completely before removing or installing any union. Apply thread sealant or PTFE tape to all male threads before assembly, and hand-tighten before using a pipe wrench to seat the union nut. Do not over-torque malleable iron fittings, as the material is susceptible to cracking under excessive force.

Technical Specifications

• Connection Size: 3/8 inches FPT
• Thread Type: NPT (ANSI B-2.1)
• Material: Malleable Iron, Galvanized
• Pressure Class: Class 150
• Weight: 0.43 pounds
• Standards: Federal Spec. WW-U-531C, ANSI B-16.39, ANSI B-16.14, ANSI B-2.1
• Sold As: Each
• UPC: 00690291034091

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700163358
