Asc 8700158309 Black Iron Merchant Coupling 2 Inch

Product Description

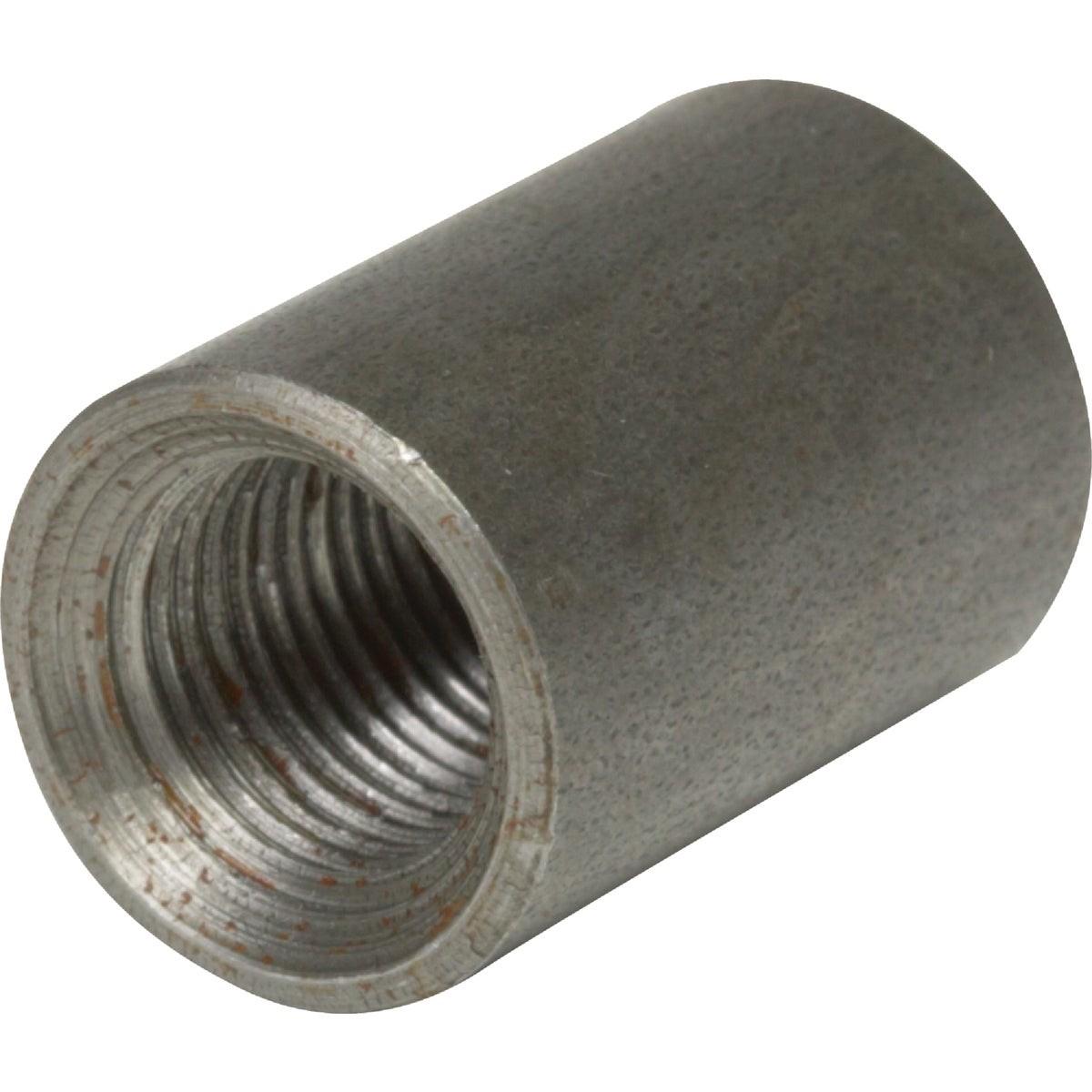

The ASC Engineered Solutions 8700158309 is a 2-inch malleable black iron merchant coupling designed to join straight pipe sections in low-pressure piping systems. Machined from malleable iron with a standard black finish, this coupling provides a reliable threaded connection for water, oil, air, and gas service lines. At 1.08 pounds, it is a compact, full-weight fitting suited for both new construction and repair work. Licensed plumbers and pipefitters install this fitting wherever a straight pipe-to-pipe connection is needed in commercial or light industrial applications.

Merchant couplings like the 8700158309 are commonly used in low-pressure distribution and utility piping. Typical applications include water supply lines, compressed air distribution, petroleum transfer piping, and natural gas service runs where pressures remain within the rated range for malleable iron threaded fittings. This coupling is sold individually and is appropriate for above-grade and exposed piping installations handled by qualified plumbing and mechanical contractors.

Key Features

• Malleable black iron construction for durability in low-pressure service
• 2-inch nominal pipe size for straight pipe-to-pipe connections
• Threaded ends compatible with standard NPT pipe fittings
• Suitable for water, oil, compressed air, and gas line applications
• Compact form factor at 1.08 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement or standard-stock merchant coupling for 2-inch malleable iron threaded piping systems in low-pressure water, oil, air, and gas service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and IFGC codes. Shut off and depressurize the supply line completely before removing or installing any threaded fitting. Apply thread sealant or PTFE tape appropriate to the service medium before making up the connection. Do not over-tighten threaded connections in malleable iron fittings, as excessive force can crack the fitting body.

Technical Specifications

• Material: Malleable Black Iron
• Nominal Pipe Size: 2 inches
• Weight: 1.08 pounds
• Connection Type: Threaded (NPT)
• Unit of Measure: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700158309
