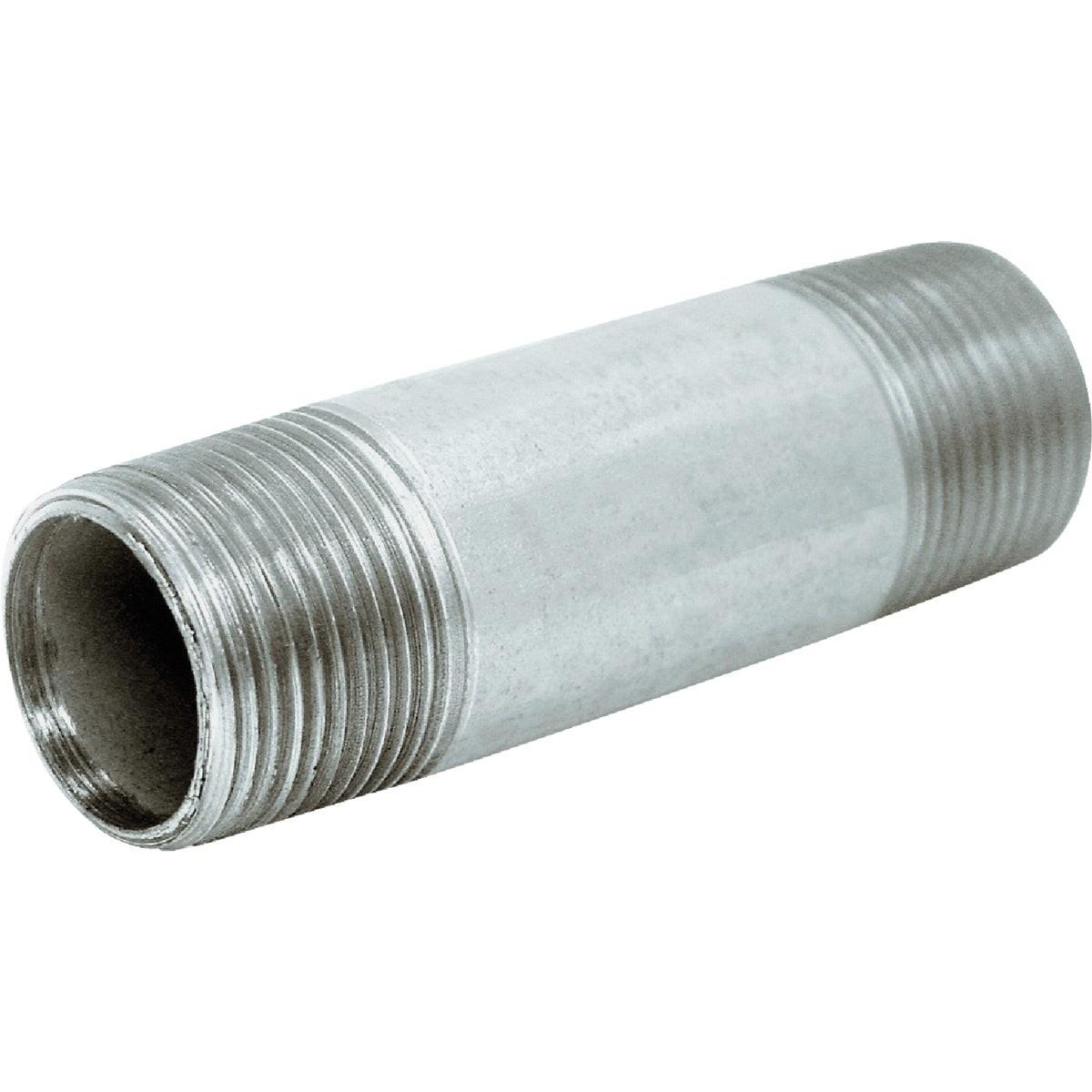

Asc 8700148250 Galvanized Pipe Nipple 3/8x1-1/2 in Sch 40

Product Description

The ASC Engineered Solutions 8700148250 is a welded steel galvanized pipe nipple sized at 3/8 inch x 1-1/2 inches, built to Schedule 40 standard wall dimensions. It is hot-dip galvanized and manufactured to meet ASTM A53 standards, making it suitable for general-purpose plumbing, gas distribution, and mechanical piping systems. The galvanized finish provides corrosion resistance for both indoor and outdoor installations. Lead content on wetted surfaces is controlled to no more than 0.25% weighted average, in compliance with low-lead requirements. Licensed plumbers and pipefitters are the primary installers of this fitting component.

This pipe nipple is used in residential and light commercial piping systems where a short threaded male connection is needed between fittings, valves, or threaded ports. Common applications include water supply lines, compressed air systems, and gas piping where Schedule 40 galvanized steel is specified. The 3/8 inch diameter and 1-1/2 inch length make it well suited for tight-clearance installations and close-coupled connections in mechanical rooms, utility spaces, and service panels.

Key Features

• Hot-dip galvanized finish meets ASTM A53 standards for corrosion resistance
• Schedule 40 standard wall thickness for general-purpose pressure piping
• Welded steel construction for consistent dimensional tolerances
• Low-lead compliant with no more than 0.25% weighted average lead content on wetted surfaces
• Threaded male ends for direct connection to standard fittings and valves

Compatibility

Designed as an OEM-style replacement or standard component for residential and commercial piping systems requiring 3/8 inch Schedule 40 galvanized steel threaded nipples.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the supply line before removing or installing any threaded pipe component. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten threaded connections, as this can crack fittings or distort threads.

Technical Specifications

• Material: Welded Steel, Hot-Dip Galvanized
• Standard: ASTM A53
• Schedule: Schedule 40
• Pipe Diameter: 3/8 inches
• Nipple Length: 1-1/2 inches
• Lead Content (Wetted Surfaces): 0.25% weighted average maximum
• Weight: 0.075 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700148250
