Asc 8700130753 Hex Galvanized Bushing 1 X 3/8 Inch

Product Description

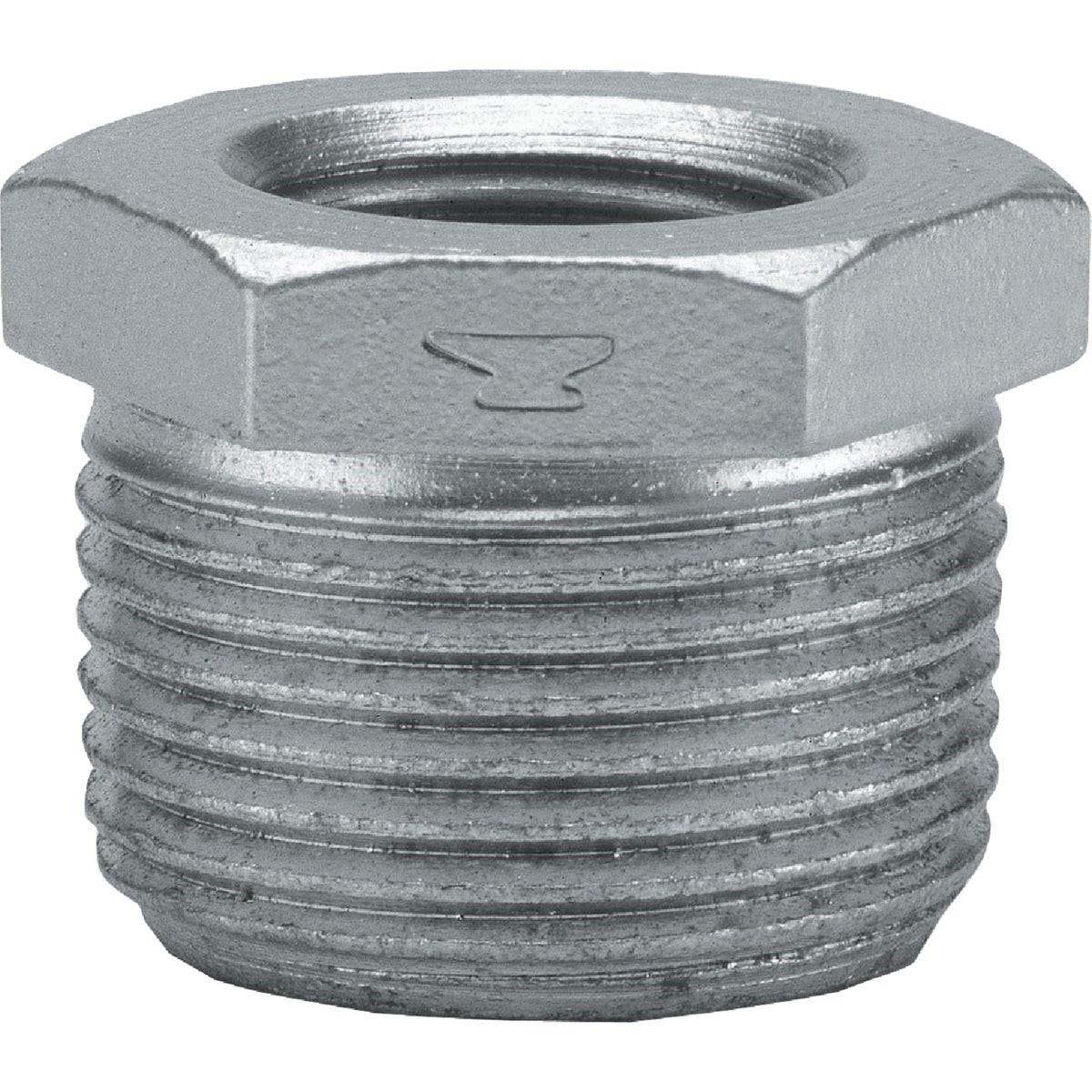

The ASC ENGINEERED SOLUTIONS 8700130753 is a hex galvanized bushing machined from malleable iron, designed to reduce a 1-inch male pipe thread down to a 3/8-inch female pipe thread. The hexagonal outer profile allows for standard wrench engagement, making installation straightforward in tight or confined spaces. This bushing meets Federal Specification WW-P-471-B and conforms to ANSI B-16.14 for dimensions and ANSI B-2.1 for pipe threads. Plumbers, pipefitters, and mechanical contractors use this fitting when transitioning between pipe sizes in ferrous piping systems. The hot-dip galvanized finish provides corrosion resistance suitable for both indoor and outdoor applications.

This bushing is suited for use in residential and light commercial plumbing, gas distribution, and general-purpose pipe systems where a threaded iron reduction fitting is required. The 1-inch male end threads into a larger fitting, coupling, or valve body, while the 3/8-inch female end accepts a smaller male-threaded pipe or fitting. Typical installation scenarios include water supply lines, compressed air systems, and natural gas distribution piping where code-compliant malleable iron fittings are specified.

Key Features

• Hex outer profile for wrench-on installation and removal
• 1-inch male NPT to 3/8-inch female NPT reducing configuration
• Malleable iron construction for durability in ferrous piping systems
• Galvanized finish for corrosion resistance in wet or outdoor environments
• Meets Federal Spec WW-P-471-B, ANSI B-16.14, and ANSI B-2.1 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard NPT-threaded iron pipe systems requiring a 1-inch to 3/8-inch threaded reduction.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable local plumbing and mechanical codes. Shut off and depressurize the system before installing or replacing any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before making up the joint. Do not overtighten; use a pipe wrench on the hex flats only and follow standard trade practice for malleable iron fittings.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Male Thread Size: 1 inch NPT
• Female Thread Size: 3/8 inch NPT
• Weight: 0.3 pounds
• Standards: Federal Spec WW-P-471-B, ANSI B-16.14, ANSI B-2.1
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700130753
