Asc 8700128203 Black Iron 45 Deg Street Elbow 1/2 in Npt

Product Description

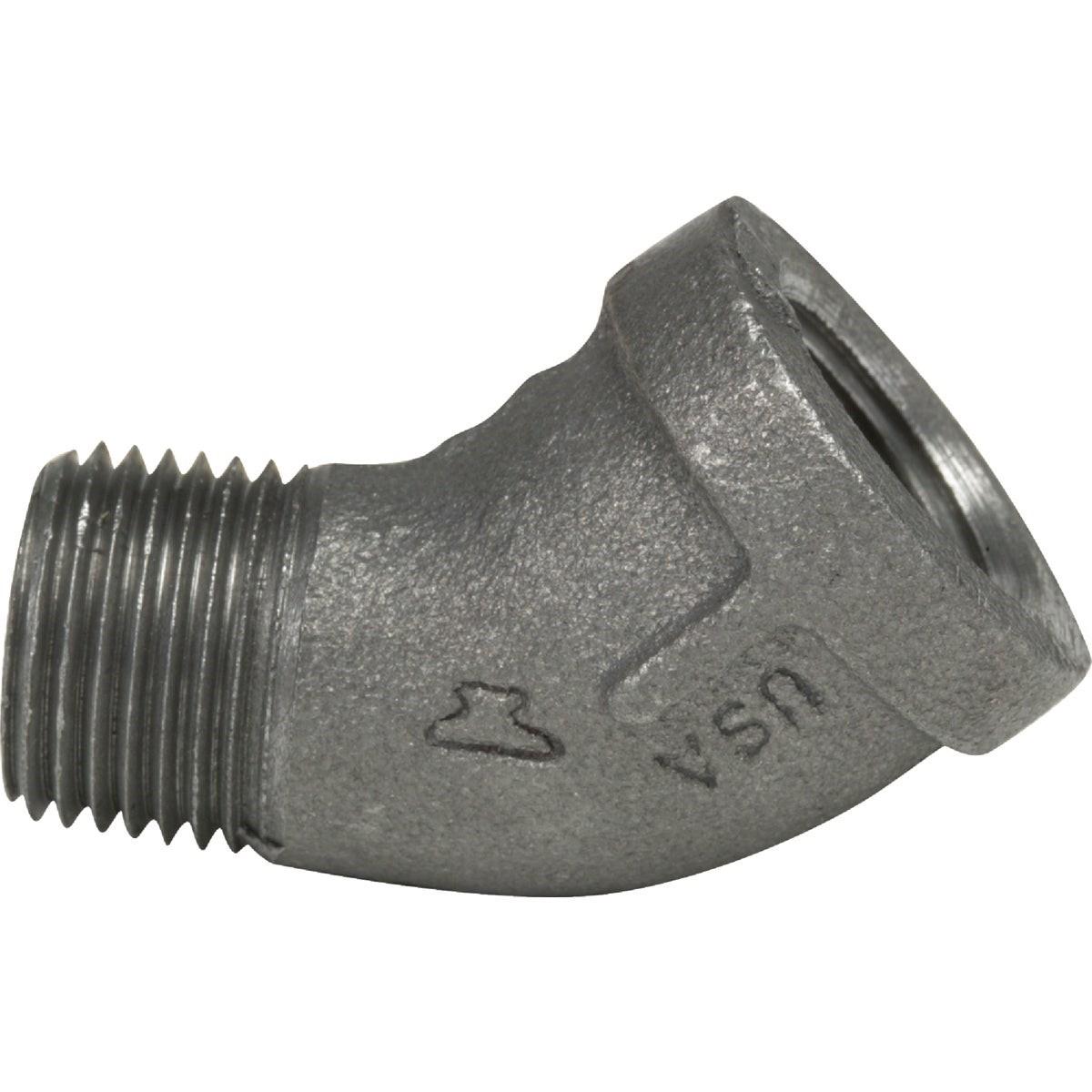

The ASC Engineered Solutions 8700128203 is a 1/2 inch 45-degree street malleable black iron elbow designed for low-pressure gas, air, and fluid piping systems. Often called a quarter-bend street fitting, it features one male NPT end and one female NPT end, allowing it to connect directly to a female-threaded pipe or fitting without a separate coupling. The flat banded construction meets standard malleable iron dimensional tolerances. Typical installers are journeyman plumbers and pipefitters working on gas distribution lines, compressed air headers, or general industrial pipe runs.

This fitting is sized at 1/2 inch and is suited for residential and light commercial piping applications where a 45-degree directional change is needed in a tight space. The street configuration eliminates one connection point compared to a standard elbow and nipple combination, saving time and reducing potential leak points. It is sold individually and is appropriate for new construction and retrofit work alike.

Key Features

• 45-degree street elbow with one male NPT and one female NPT end in a single fitting
• 1/2 inch pipe size for common residential and commercial piping runs
• Malleable black iron construction meeting ASTM A-197 chemical and physical property requirements
• Flat banded straight-size design conforming to ANSI B-16.3 dimensional standards
• NPT threads comply with ANSI B-2.1 pipe thread specifications
• Meets Federal Specification WW-P-521F for malleable iron fittings

Compatibility

Designed as a standard 1/2 inch NPT malleable black iron street fitting for use in threaded pipe systems complying with ANSI B-16.3 dimensional requirements, including gas, air, and general-service fluid lines.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Fuel Gas Code (IFGC), or the International Plumbing Code (IPC) depending on the service. Shut off and depressurize the line before threading or removing any fitting. Apply an appropriate thread sealant or tape rated for the intended service medium to all NPT connections before assembly. Do not use black iron fittings on potable water systems without verifying local code acceptance.

Technical Specifications

• Pipe Size: 1/2 inch
• Angle: 45 degrees
• End Connections: Male NPT x Female NPT (Street)
• Material: Malleable Black Iron
• Weight: 0.2 pounds
• Standards: Fed. Spec. WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• Unit of Measure: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700128203
