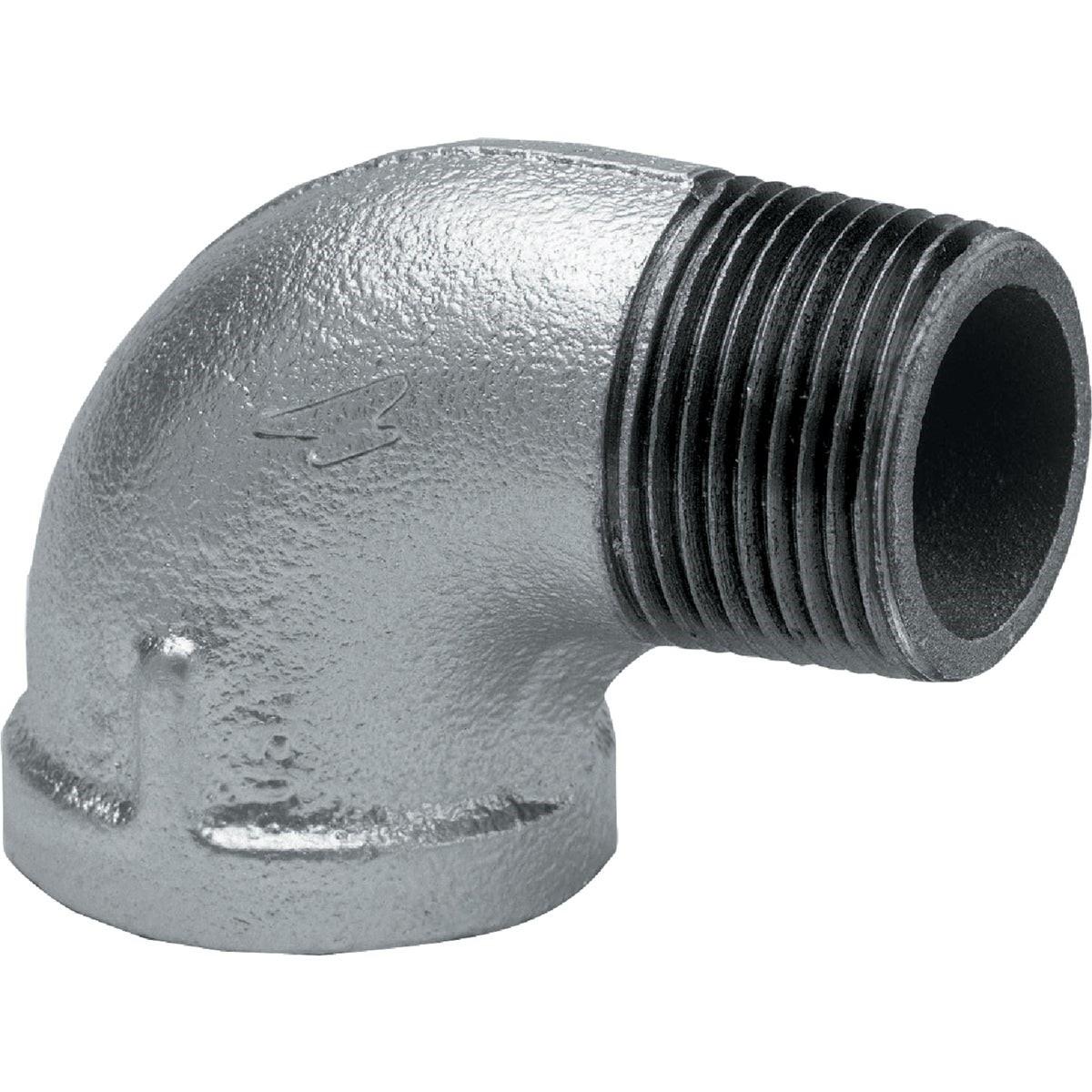

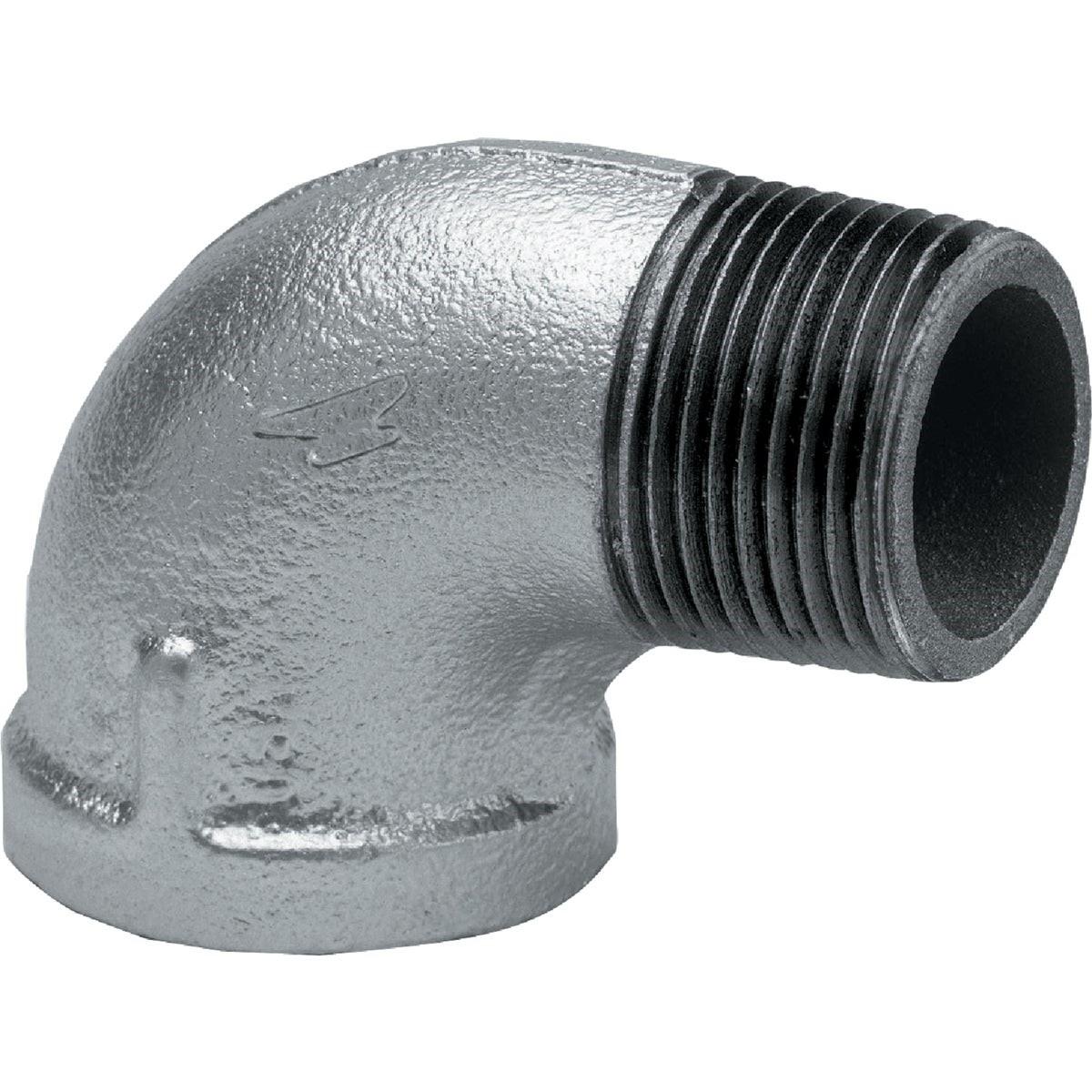

Asc 8700127957 1-1/2 in 90 Deg Galvanized Street Elbow

Product Description

The ASC ENGINEERED SOLUTIONS 8700127957 is a 1-1/2 inch 90-degree street galvanized malleable iron elbow, also referred to as a 1/4 bend. It is used to change pipe direction by 90 degrees in threaded piping systems. The fitting is manufactured from malleable iron with a galvanized finish for corrosion resistance and features flat banded straight sizing. It conforms to Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this fitting in water, gas, and general service piping systems.

This street elbow is suited for residential and light commercial threaded pipe installations where a direction change is required without an additional pipe nipple. The male-by-female thread configuration of a street elbow allows direct connection to another fitting, saving space in tight installations. It is commonly used in water supply, drainage, and general-purpose piping applications that call for a standard galvanized malleable iron fitting.

Key Features

• 90-degree street elbow configuration with male NPT on one end and female NPT on the other
• Galvanized malleable iron construction for corrosion resistance in threaded piping systems
• Flat banded straight sizes for consistent dimensional standards
• Meets Federal Specification WW-P-521F and ANSI B-16.3 dimensional requirements
• Pipe threads conform to ANSI B-2.1 standard
• Material properties comply with ASTM A-197 for chemical and physical requirements

Compatibility

Designed as an OEM-style replacement or standard-fit component for 1-1/2 inch NPT threaded malleable iron piping systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC or local plumbing code requirements. Shut off and depressurize the piping system before removing or installing any threaded fittings. Apply an approved pipe thread sealant or PTFE tape to all male threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Galvanized Malleable Iron
• Pipe Size: 1-1/2 inches
• Angle: 90 degrees
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 1.55 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700127957
