Asc 8700127809 3/4 in Galvanized Street Elbow 90 Deg

Product Description

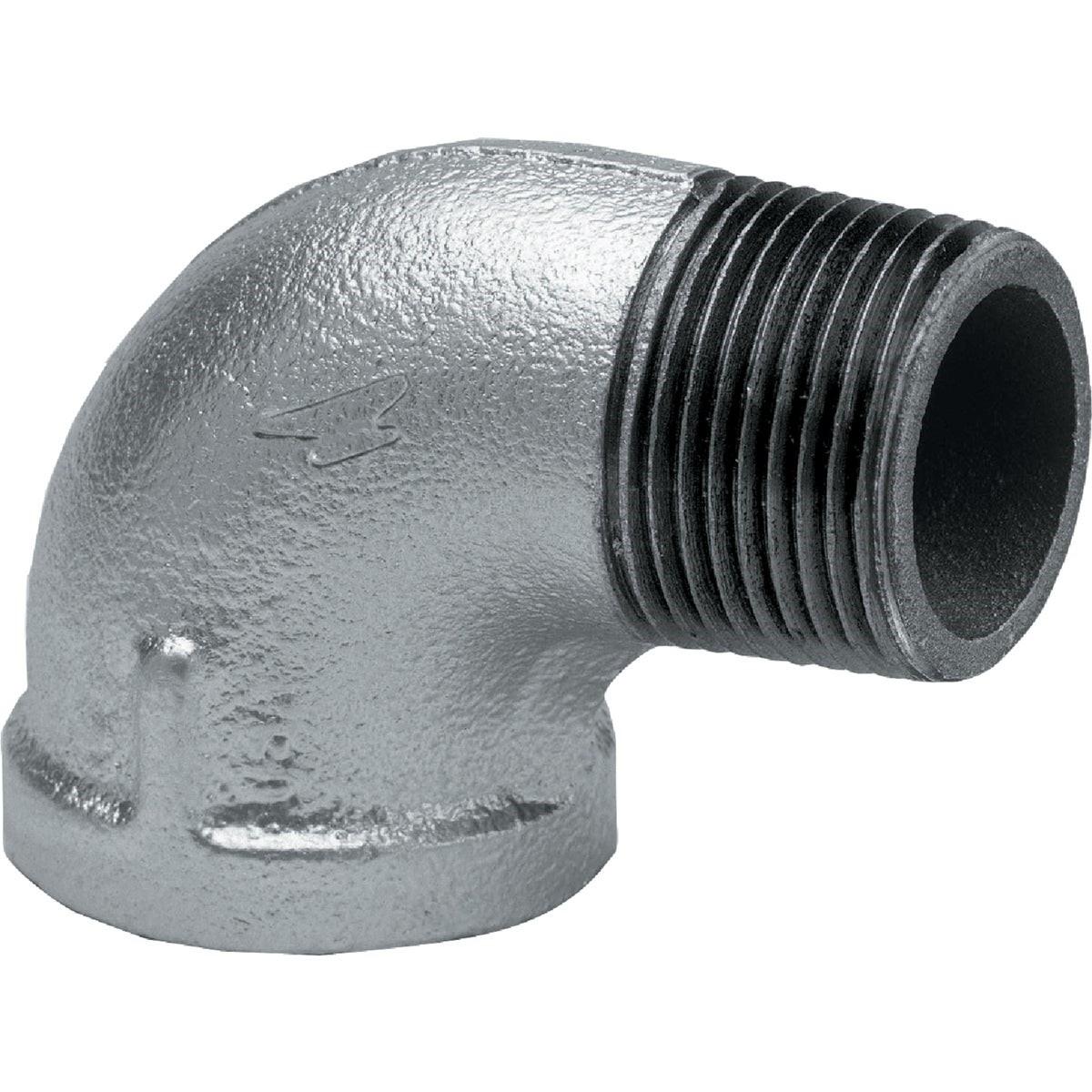

The ASC ENGINEERED SOLUTIONS 8700127809 is a 3/4-inch 90-degree street elbow, also called a 1/4 bend, made from galvanized malleable iron. Street elbows have one male-threaded end and one female-threaded end, allowing a direct connection without a separate nipple. This fitting is built to Federal Specification WW-P-521F, dimensioned to ANSI B-16.3, threaded to ANSI B-2.1, and meets ASTM A-197 chemical and physical property requirements. Plumbers and pipefitters use this type of fitting in threaded iron pipe systems for water distribution, gas piping, and general industrial service. The flat banded design is consistent with standard malleable iron fitting profiles.

This street elbow is suited for residential and light commercial threaded pipe installations where a 90-degree direction change is needed in a tight space. The single-piece street configuration saves space compared to a standard elbow-plus-nipple combination. It is appropriate for use in potable water supply lines, gas distribution piping, and steam or compressed air systems that call for galvanized malleable iron fittings. Licensed plumbers and pipefitters are the primary installers in code-governed applications.

Key Features

• 90-degree street elbow (1/4 bend) with one male and one female threaded end
• 3/4-inch pipe size with threads conforming to ANSI B-2.1
• Galvanized malleable iron construction per ASTM A-197
• Flat banded straight-size pattern per ANSI B-16.3 dimensions
• Meets Federal Specification WW-P-521F for standard malleable iron fittings

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch threaded iron pipe systems conforming to ANSI B-16.3 standard malleable iron fitting dimensions.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing or mechanical codes, including IPC and IFGC requirements where applicable. Shut off and depressurize the pipe system completely before making or breaking any threaded connections. Apply an approved pipe thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten; use a pipe wrench sized appropriately for 3/4-inch fittings and follow standard trade practice for thread engagement.

Technical Specifications

• Pipe Size: 3/4 inch
• Angle: 90 degrees
• Fitting Type: Street Elbow (1/4 Bend)
• Material: Galvanized Malleable Iron
• Weight: 0.42 pounds
• Thread Standard: ANSI B-2.1
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700127809
