Asc 8700127452 Black Iron Street Elbow 90 Deg 1-1/4 in Npt

Product Description

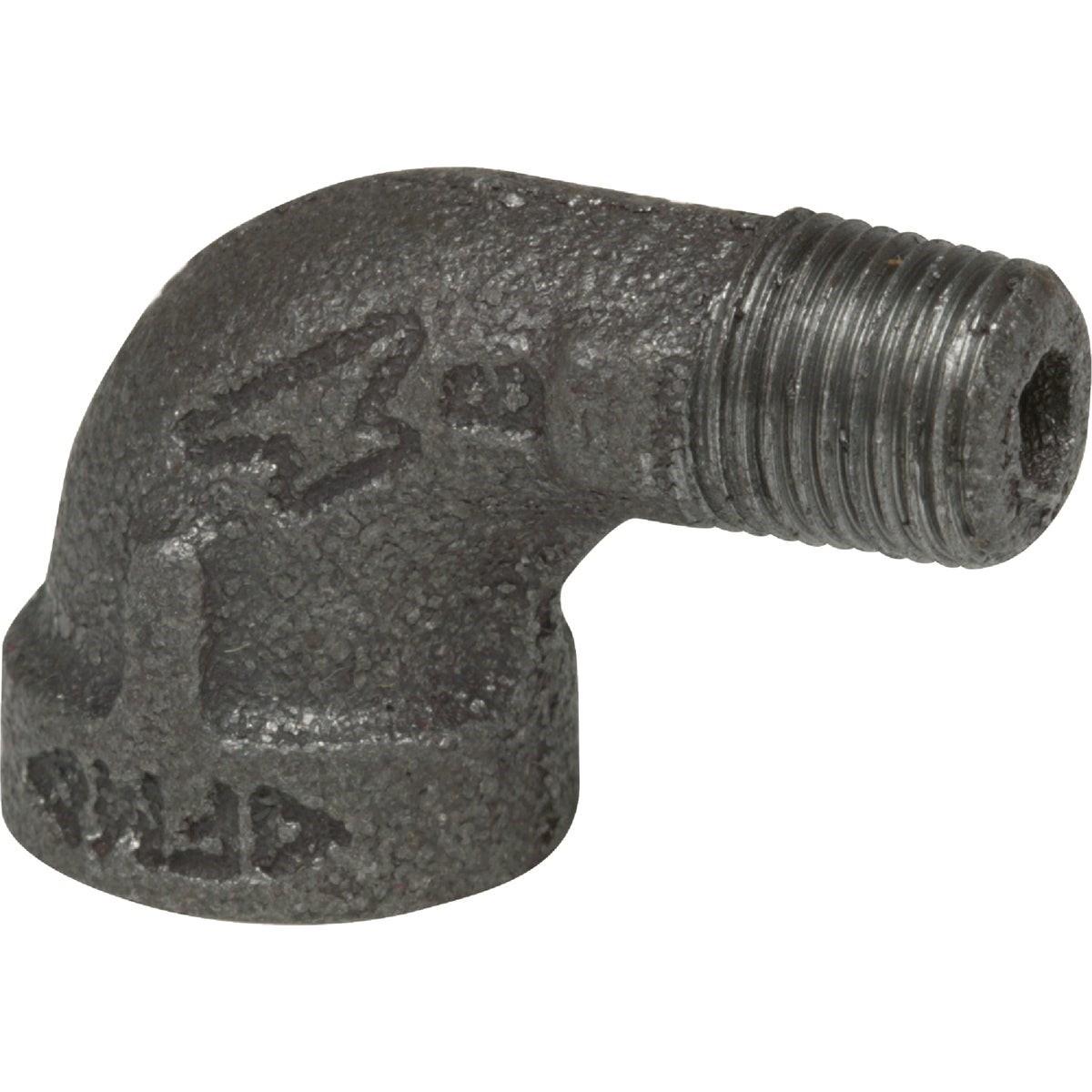

The ASC Engineered Solutions 8700127452 is a 1-1/4 inch 90-degree street malleable black iron elbow, also referred to as a 1/4 bend. It features one male NPT end and one female NPT end, allowing it to make a right-angle direction change in a threaded pipe run without requiring a separate nipple on the male side. The fitting is manufactured from standard malleable iron with flat banded construction and meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this fitting in low-pressure gas, water, and steam distribution systems.

This street elbow is used in residential and commercial piping applications where a 90-degree change of direction is needed in a threaded black iron pipe system. The street configuration — male on one end, female on the other — is common in tight-space installations where eliminating an extra nipple reduces overall assembly length. Typical applications include natural gas distribution piping, steam heating systems, and general industrial pipe runs. The black iron finish makes it appropriate for gas service where galvanized fittings are not permitted.

Key Features

• 90-degree street elbow (1/4 bend) with one male NPT and one female NPT end
• 1-1/4 inch pipe size with flat banded straight construction
• Malleable iron construction per ASTM A-197 for chemical and physical properties
• Dimensional compliance with ANSI B-16.3; thread form per ANSI B-2.1
• Meets Federal Specification WW-P-521F
• Black iron finish suitable for gas service applications

Compatibility

Designed as an OEM-style replacement or standard installation fitting for 1-1/4 inch threaded black iron pipe systems in residential and commercial gas, steam, and water piping applications.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters working on threaded iron pipe systems. Shut off and depressurize the line before disassembling or installing any threaded fitting. Apply an approved pipe thread sealant or PTFE tape to male threads before makeup; consult local code for approved compounds on gas service. All gas piping installations must be inspected and pressure-tested in accordance with the International Fuel Gas Code (IFGC) or applicable local authority.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Fitting Type: 90-Degree Street Elbow (1/4 Bend)
• End Connections: Male NPT x Female NPT
• Material: Malleable Black Iron
• Weight: 1.1 pounds
• Dimensional Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• UPC: 00690291023521

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700127452
