Asc 8700127155 1/8 in 90 Deg Street Elbow Black Iron Npt

Product Description

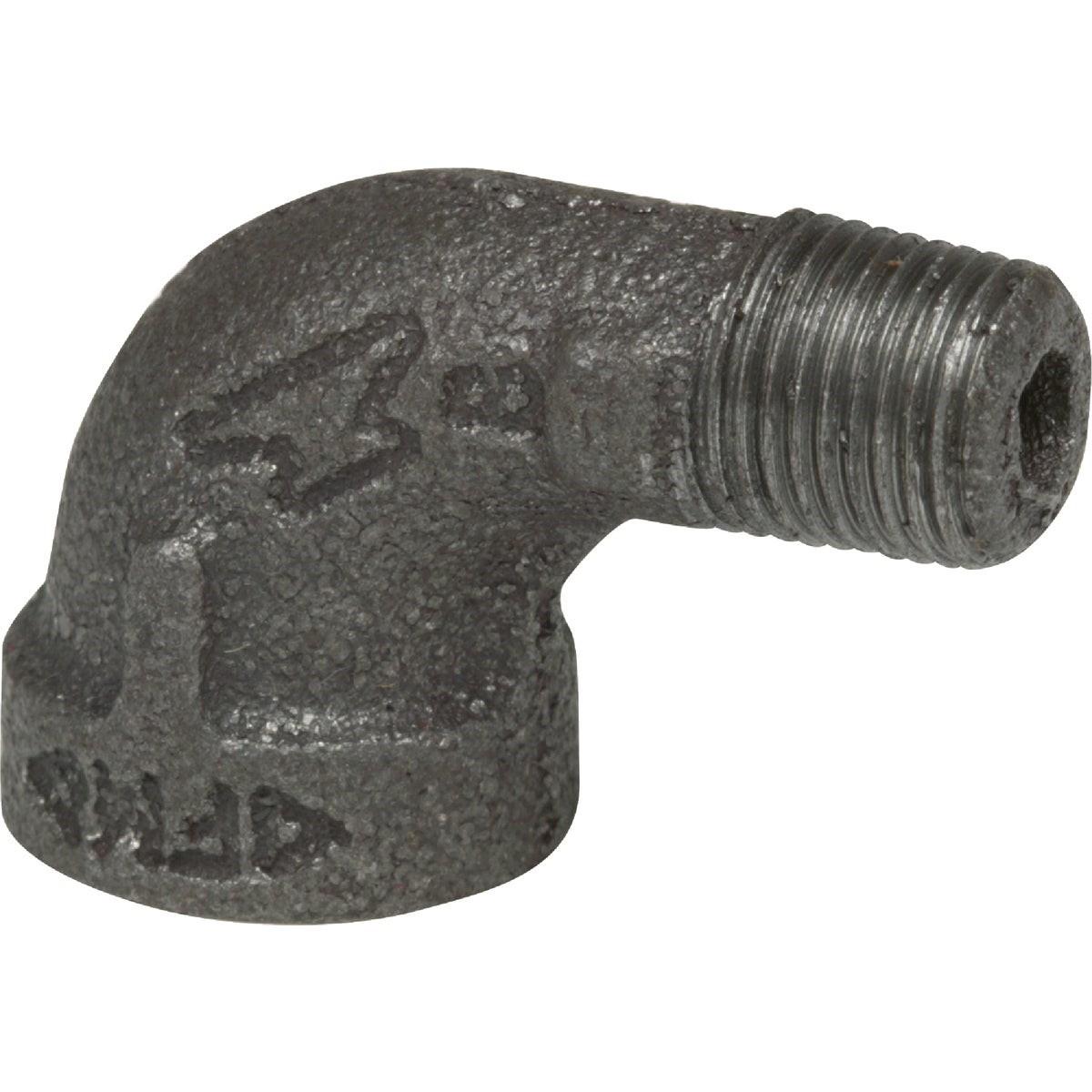

The ASC Engineered Solutions 8700127155 is a 1/8-inch 90-degree street malleable black iron elbow, also referred to as a 1/4 bend. It features one male NPT thread and one female NPT thread, allowing it to connect directly into a pipe or fitting without requiring a separate coupling. The flat banded body is cast from malleable iron conforming to ASTM A-197 chemical and physical property standards. This fitting is a standard catalog item used by plumbers and pipefitters working on low-pressure gas, air, and water distribution systems where a directional change is needed in tight spaces.

This elbow is suited for residential and light commercial piping applications where a 90-degree change of direction is required and inline access is limited. The street configuration eliminates the need for an extra fitting at one end, making it useful in close-quarter runs. It is installed by licensed plumbers and pipefitters on black iron pipe systems, most commonly in natural gas, propane, compressed air, and steam distribution lines.

Key Features

• 90-degree street elbow configuration with male NPT inlet and female NPT outlet
• 1/8-inch pipe size for small-diameter branch and service connections
• Malleable black iron construction per ASTM A-197
• Flat banded body style for straight-size dimensional consistency
• Meets Fed. Spec. WW-P-521F, ANSI B-16.3 dimensions, and ANSI B-2.1 pipe thread standards

Compatibility

Designed as an OEM-style replacement fitting for standard 1/8-inch black iron pipe systems using NPT threaded connections in residential and commercial gas, air, and plumbing distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and IFGC or IPC requirements. Shut off and depressurize the supply line completely before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before assembly, and tighten with pipe wrenches to the appropriate engagement depth without over-stressing the casting. Do not use on systems where malleable iron fittings are not rated or approved.

Technical Specifications

• Pipe Size: 1/8 inch
• Fitting Angle: 90 degrees
• Thread Type: Male x Female NPT
• Material: Malleable Black Iron
• Weight: 0.075 pounds
• Standard: ASTM A-197, ANSI B-16.3, ANSI B-2.1, Fed. Spec. WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700127155
