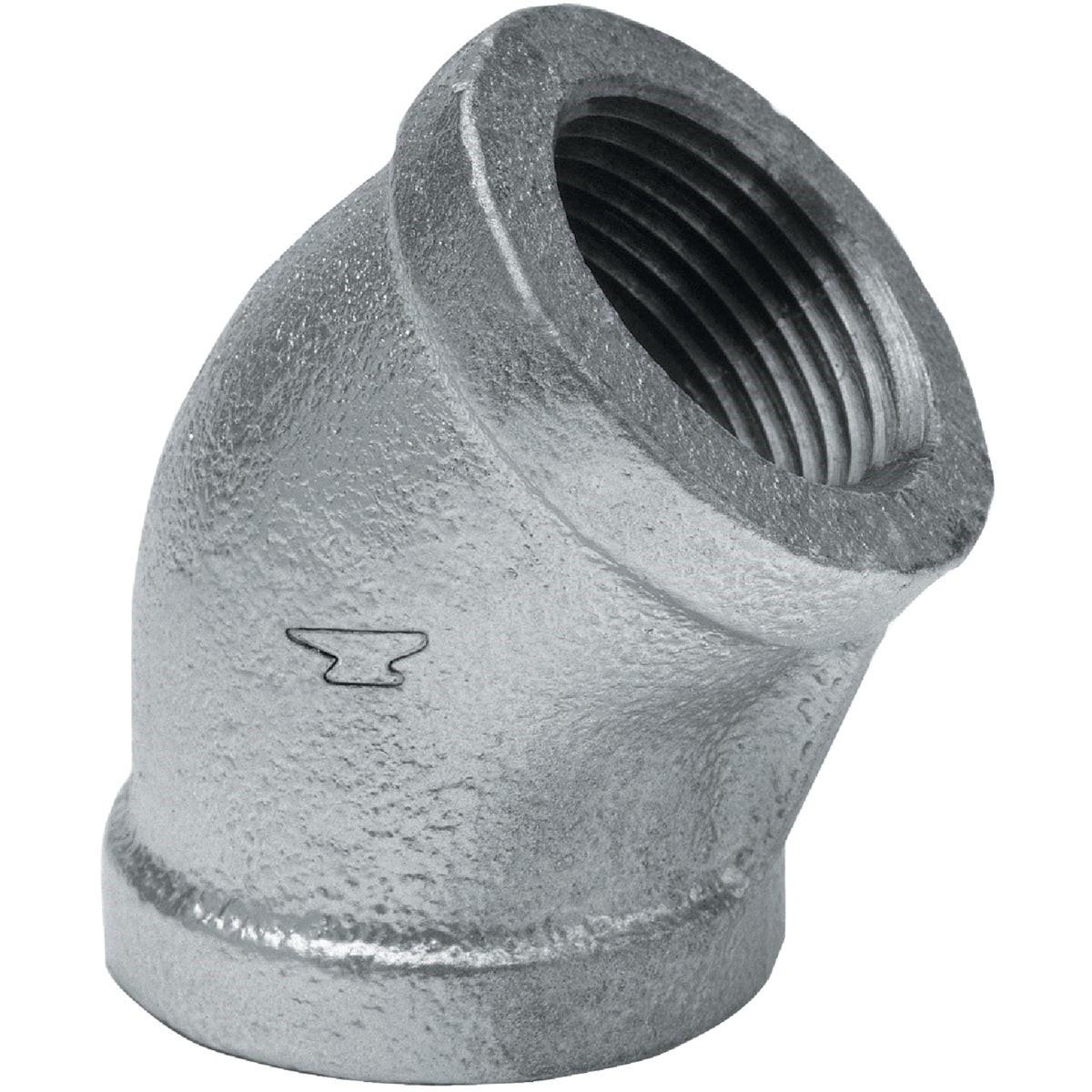

Asc 8700126652 3/4 in Galvanized 45 Deg Malleable Iron Elbow

Product Description

The ASC Engineered Solutions 8700126652 is a 3/4-inch, 45-degree malleable iron elbow with a galvanized finish, used to change pipe direction at a 45-degree angle in threaded piping systems. Also referred to as a 1/8 bend, this fitting features a flat banded body and is manufactured from malleable iron conforming to ASTM A-197 chemical and physical property standards. It meets Federal Specification WW-P-521F, ANSI B16.3 for dimensions, and ANSI B2.1 for pipe thread specifications. Plumbers and pipefitters install this type of fitting in water supply, fire protection, and general-purpose piping systems where a gradual directional change is required.

This 45-degree elbow is suited for residential and light commercial piping applications where galvanized malleable iron fittings are the specified material. Common installations include domestic water supply lines, steam systems, and gas distribution piping where threaded connections are standard. The 3/4-inch size fits into typical branch and main line configurations handled daily in the field. Sold individually, this fitting is a direct-replacement component for standard NPT threaded systems.

Key Features

• 45-degree (1/8 bend) direction change for threaded pipe runs
• Galvanized finish provides corrosion resistance in wet and humid environments
• Flat banded malleable iron body per ASTM A-197
• Dimensions per ANSI B16.3 and threads per ANSI B2.1
• Meets Federal Specification WW-P-521F
• 3/4-inch NPT threaded connections

Compatibility

Designed as an OEM-style replacement fitting for standard 3/4-inch NPT threaded malleable iron piping systems in residential and commercial plumbing, steam, and gas applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the system before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to all male NPT threads per local code requirements. Verify system pressure ratings and applicable code compliance under IPC or IFGC before returning the line to service.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 3/4 inch
• Angle: 45 degrees (1/8 Bend)
• Connection Type: NPT Threaded
• Body Style: Flat Banded
• Weight: 0.39 pounds
• Standards: ASTM A-197, ANSI B16.3, ANSI B2.1, Federal Specification WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700126652
